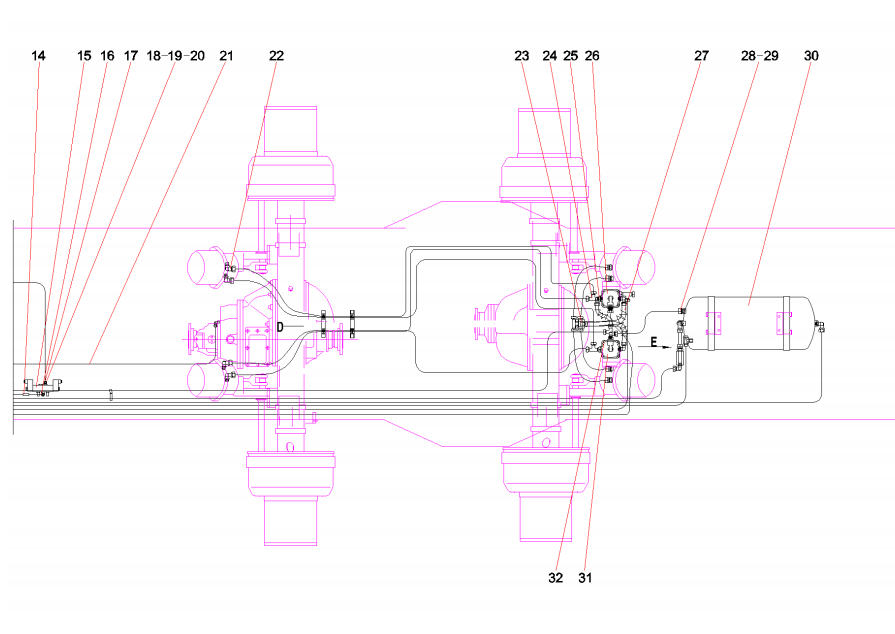

12562666 Device of brake systemSY5303JD2.6
1 60147042 Valve, quick release 1
2 A210770000597 Tee adapter, clamp sleeve-type end 1
3 A229900002973 Washer, seal 8
4 A210770000392 Connector, pipe 5
5 A210111000089 Bolt 6
6 A210401000017 Washer 18
7 A241400000011 Pipe, nylon 75
8 A229900003021 Bushing 46
9 A210710000004 Sleeve, clip 46
10 A210306000012 Nut 46
11 A229900003250 Connector, right angle, bulkhead 2
12 A210338000000 Nut 4
13 A229900003130 Hose, brake 2
33 60128949 Electromagnetic valve group 1
34 A820199003120 Block,joint 1
35 A229900003013 Hose GP, high temperature 1
36 A229900003350 Body, connector, through, clamp end 2
37 A210338000001 Nut 2
38 A820101330953 Bracket, front, hose, high-temp 1
39 11287699 Tee, sensor, barometer 2
40 A229900003038 Elbow, right angle 1

14 60148580 Filter of Electromagnetic valve 2
15 60128948 5-bit and 2-passage valve 1
16 10810395 Connector, right angle 2
17 10810396 Connector, pipe 4
18 A210306000008 Nut 8
19 A210710000003 Sleeve, clip 8
20 A229900003019 Bushing 8
21 A240900000006 Tube, plastic 35
22 A210770000394 Connector, pipe 15
23 A229900003251 Connector, tee 2
24 A229900003354 Connector, tee 3
25 A210770000393 Connector, pipe 7
26 A220401000615 Valve, differential 1
27 A229900005108 Hose, brake 3
28 A229900003042 Connector, straight, end 5
29 A229900002971 Washer, seal 12
30 A229900003017 Barrel, gas storage 1
31 A220401000616 Valve, relay 1
32 A210314000008 Nut 4

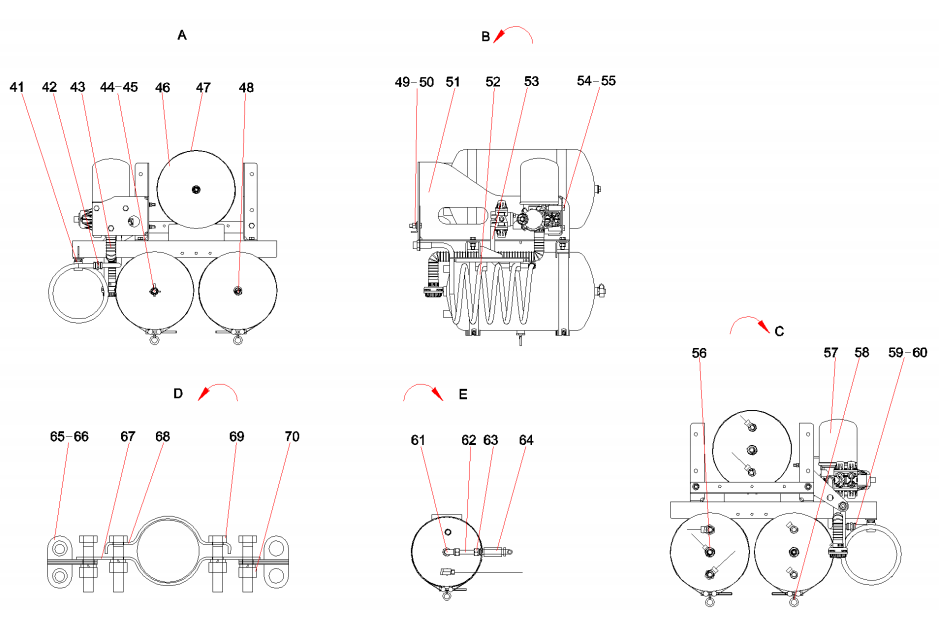

41 B210851000038 Clamp, single pipe 2
42 60188156 straight joint 1
43 60220124 pipe laying 1
44 A229900003257 Connector, transition 1
45 A229900003037 Connector, measuring 1
46 A229900003261 Barrel, gas storage 3
47 10135646 Tie GP, cable, air reservoir 8
48 A210332000003 Plug, screw 3
49 A210111000011 Bolt 4
50 A210401000001 Washer 4
51 12935748 Main air-reserving cylinder assemblySYM5 1
52 12934844 spiral tubeSYM5333JS2.6-1 1
53 12920409 air intake tubeSYM5333JS2.6-2 1
54 A210114000067 Bolt 3
55 A210401000002 Washer 3
56 A229900003046 Connector, right angle, direction adjusting 1
57 60154454 Desiccator With 4-circuit protective val 1
58 60147040 Valve GP, drain 3
59 A210710000006 Sleeve, clip 4
60 A210306000014 Nut 4
61 A229900003051 Adaptor, right angle, adjustable 1
62 10810481 Steel pipe GP, connection, check valve 1
63 A210770000402 Connector, pipe 2
64 60147041 Valve, check 1
65 A229900004636 Sheet, clamp 8
66 A229900004637 Bushing, clamp 8
67 10894214 Base plate, clamp 2
68 10017227 Clamp 2
69 A210111000090 Bolt 8
70 A210307000012 Nut 8
