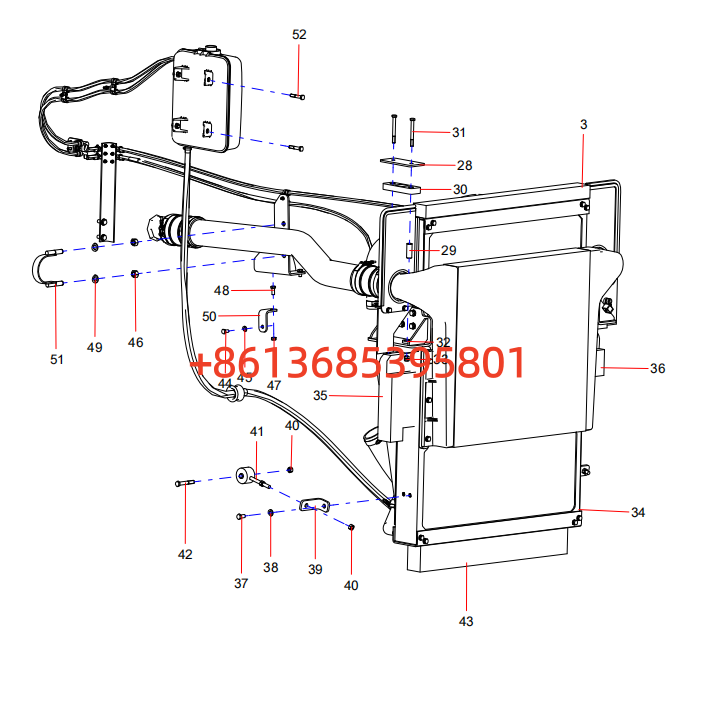

14488025 Installation of Radiator and Piping

发布日期：2026-10-15

#14488025 Installation of Radiator and Piping
#SANY Original spare parts
WhatsApp: +86 136 8539 5801
WeChat: 13685395801
Email: pretty@chinaweiman.cn
#SANY Mining wide-body dump truck #Dump Truck #SANY #SKT90S
14488025 Installation of Radiator and Piping
1 14353267 Intake Pipe 1
2 60185863 T-bolt Spring Clamp 2
3 ODT004980785 Sponge 1
4 14353392 Degassing Pipe 1
5 A210855000003 Hose Clamp 8
6 14353337 Engine Water Outlet Pipe 1
7 14353042 Intake Pipe 2
8 14355451 Steel Intake Pipe 1
9 A210855000066 Perforated Hose Clamp 2
10 14353332 Engine Water Inlet Pipe 1
11 60250995 T-bolt Spring Clamp 2
12 14353671 Bracket 1
13 14353391 Refill Pipe 1
14 14429709 Protective Sleeve 1
15 60250992 T-bolt Spring Clamp 6
16 14353393 Degassing Pipe 1
17 14355730 Degassing Pipe 2
18 ODT004821442 Bracket 1
19 A210204000147 Screw 2
20 A210405000007 Washer 2
21 ODT005119437 Degassing Pipe Bracket 1
22 A210111000202 Bolt 2
23 160899000035A Expansion Tank 1
24 A210204000138 Screw 1
25 60000420 Pipe clamp 10
26 A210307000016 Nut 3
27 A210204000132 Screw 5
38 A210405000001 Washer 8
53 ODT004611606 Bracket 1
54 A210307000031 Nut 4
55 A210111000204 Bolt 4

#SANY Original spare parts
WhatsApp: +86 136 8539 5801
WeChat: 13685395801
Email: pretty@chinaweiman.cn
3 ODT004980785 Sponge 1
28 14353390 Shim/Backing Plate 2
29 131699000003B Steel Sleeve for Radiator Damper 4
30 131602000007B Upper Radiator Damper 2
31 A210110000359 Bolt 4
32 131602000008B Lower Radiator Damper 2
33 A210307000036 Nut 8
34 160801020038A Radiator 1
35 ODT004980786 Sponge 1
36 ODT004980781 Sponge 1
37 A210111000101 Bolt 2
38 A210405000001 Washer 8
39 14353646 Bracket 2
40 A210307000001 Nut 6
41 131602000009B Damper Tie Rod 2
42 A210110000013 Bolt 2
43 ODT004980788 Sponge 1
44 A210111000011 Bolt 2
45 A210405000011 Washer 3
46 A210307000040 Nut 2
47 A210307000017 Nut 5
48 A210111000018 Bolt 3
49 A210405000003 Washer 2
50 14353649 Bracket 1
51 14353673 Pipe Clamp 1
52 A210110000267 Bolt 2
