13434390 Hydraulic tank assembly

发布日期：2026-02-09

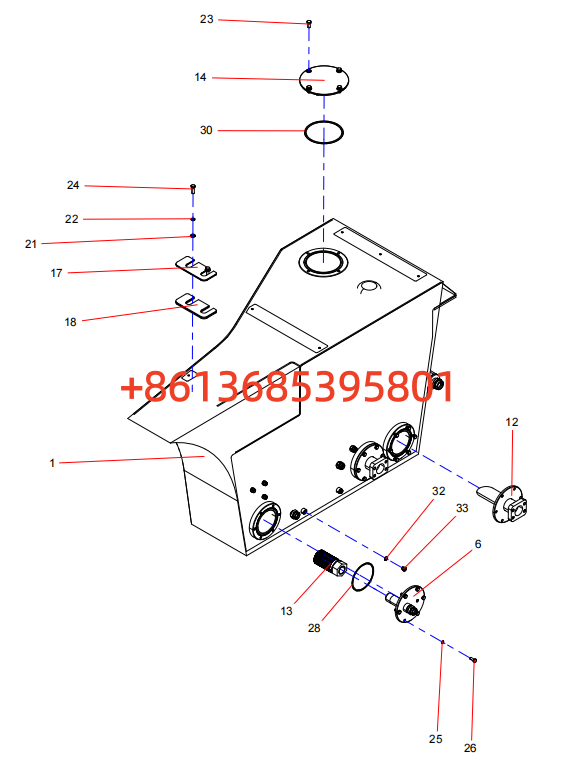

13434390 Hydraulic tank assembly

1 13021688 Hydraulic oil tank body 1

6 13426573 Suction cover assembly 1

12 13003132 Dual pump suction pipe assembly 2

13 A222100000366 Suction filter 1

14 12980861 Return cover 1

17 12950668 Front gasket 3 2

18 12950670 Front gasket 5 2

21 A210405000001 Washer 12

22 A210401000002 Spring washer 12

23 A210111000037 Bolt 4

24 A210111000039 Bolt 4

25 A210401000001 Spring washer 46

26 A210111000018 Bolt

46

28 A210609000174 O-ring 3

30 21010435 O-ring 1

32 A210434000007 Washer 2

33 B210780000201 Plug 2

2 24001922 Air Filter 1

3 A210401000013 Spring Washer 6

4 A210210000023 Screw 6

5 A250100000041 Level Gauge 1

7 13426575 Manhole Cover Assembly 1

8 13436919 Connector Seat 1

9 10774636 Cleaning Oil Hole Cover 3

10 A210434000015 Washer 3

11 21051814 Screw Assembly 3

15 12950605 Washer 2 6

16 12950603 Washer 3 6

19 12950666 Rear Washer 3 2

20 12950667 Rear Washer 5 2

27 A210609000082 O-ring 3

29 A210609000295 O-ring 1

31 A210609000314 O-ring 1

34 13436923 Return oil pipe 1

35 A210609000135 O-ring 1

36 A210204000024 Screw 4

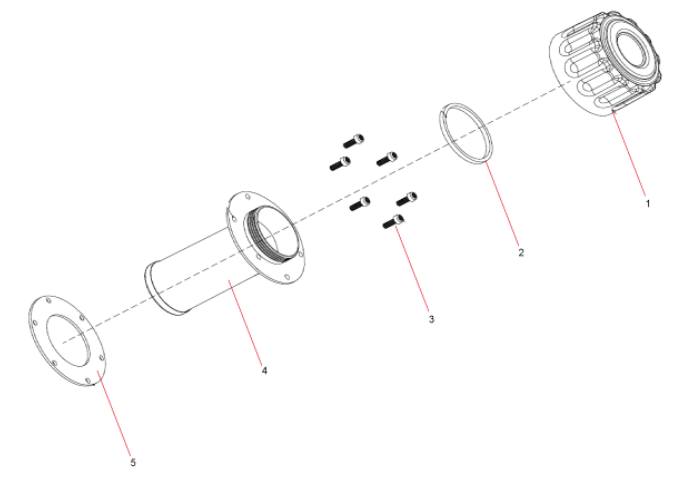

24001922 Air Filter

1. 150202040040A015 Air Filter Head 1

2. 150202040040A016 Sealing Gasket 1

3. 150202040040A017 White Hex Head Screw 6

4. 150202040040A018 Oil Filter 1

5. 150202040040A019 Flange Sealing Gasket 1
