13614388 Gantry Assembly
SANY Original spare parts
#SANY Original spare parts
WhatsApp: +86 136 8539 5801
WeChat: 136 8539 5801
1 13614255 Outer mast 1
2 13614290 Inner mast 1
3 14011855 Sprocket assembly 2
4 12000822 Hose roller assembly 1
5 60280475 Plate chain 2
6 13004601 Hydraulic hose bracket 2
7 A210307000039 Nut 6
8 13172489 Chain connector 2
9 13625542 Lifting cylinder 2
10 14005317 Swing cylinder assembly 2
11 A210204000023 Screw 16
12 A210401000002 Spring washer 32
13 14012415 Frame connecting shaft 2
14 A210204000304 Screw 16
15 A210491000028 Pin 2
16 A210111000112 Bolt 8
17 A210405000003 Washer 12
18 A210401000004 Spring Washer 28
19 A210501000008 Pin 8
20 A210204000020 Screw 8
21 A210208000007 Screw 4
22 14006623 Hydraulic Cylinder Connecting Shaft 4
23 A210111000040 Bolt 8
24 60023433 Washer 8
SANY Original spare parts
#SANY Original spare parts
WhatsApp: +86 136 8539 5801
WeChat: 136 8539 5801

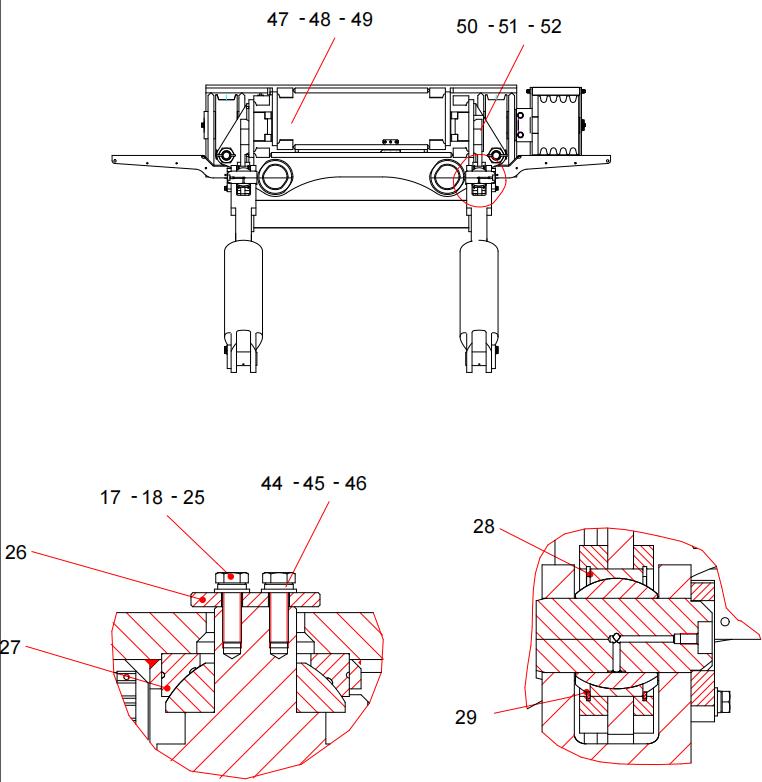

17 A210405000003 Washer 12
18 A210401000004 Spring Washer 28
25 A210111000230 Bolt 4
26 11786684 Washer 2
27 60044619 Spherical Plain Bearing 2
28 A221500000195 Spherical Plain Bearing 2
29 A210416000047 Retaining Ring 4
44 60013684 Washer 4
45 60013683 Washer 8
46 14159180 Anti-loosening Washer 4
47 A210111000212 Bolt 4
48 A210404000009 Washer 5
49 14005891 Pallet 4
50 13897675 Base Plate 1
51 14218298 Baffle 2
52 24003229 Bolt 2
SANY Original spare parts
#SANY Original spare parts
WhatsApp: +86 136 8539 5801
WeChat: 136 8539 5801

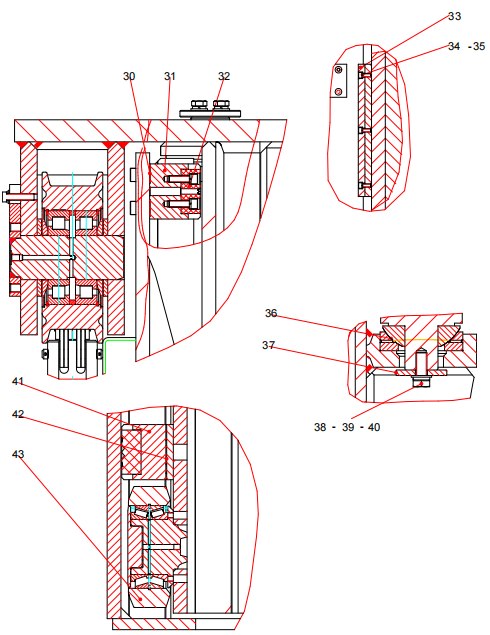

30 A820102020093 Adjusting shims 4
31 11874035 Upper slider seat 2
32 12075118 Slider 4
33 14362809 Sensing block II 2
34 A210111000079 Bolt 6
35 A210401000016 Spring washer 6
36 60204247 Spherical plain bearing 2
37 A820199330002 Washer 2
38 A210405000008 Washer 2
39 A210401000006 Spring washer 2
40 A210111000108 Bolt 2
41 11874037 Lower slider seat 2
42 12842976 Adjusting shims 4
43 11874050 Roller assembly 4
