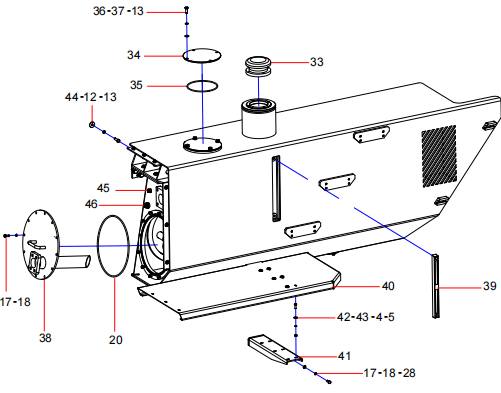

13061144 Working oil tank assembly
1 13061002 Working oil tank body 1
2 13060564 Left front cover 1
3 A210111000089 Bolt 6
4 A210404000005 Washer 18
5 A210401000017 Spring washer 12
6 14066232 Working oil tank front bracket 1
7 14066235 Working oil tank rear bracket 1
8 A210204000161 Screw 43
9 A210401000006 Spring washer 6
10 A210491000132 Washer 6
11 A210111000041 Bolt 4
12 A210404000004 Washer 12
13 A210401000002 Spring Washer 12
14 A210307000001 Nut 4
15 13060517 Oil Suction Cover Assembly 1
16 13060532 Oil Suction Pipe Cover 1
17 A210111000018 Bolt 6
18 A210401000001 Spring Washer 43
19 21023884 Plug 1
20 A210609000295 O-ring 3
21 10774636 Cleaning Oil Hole Cover 1
22 A210609000082 O-ring 1
23 21051814 Screw Assembly 1
24 A210434000014 Washer 1
25 A210434000009 Washer 1
26 A210333000011 Plug 1
27 A210307000017 Nut 6
28 A210405000011 Washer 15
29 B210780000712 Straight-through connector 2
31 B210399000002 Plug 1
47 A210204000233 Screw 6
SANY Original spare parts
#SANY Original spare parts
#Sany SRSC45 #13061144 Working oil tank assembly
WhatsApp: +86 136 8539 5801
WeChat: 136 8539 5801
13061144 Working oil tank assembly
4 A210404000005 Washer 18
5 A210401000017 Spring Washer 12
12 A210404000004 Washer 12
13 A210401000002 Spring Washer 12
17 A210111000018 Bolt 6
18 A210401000001 Spring Washer 43
20 A210609000295 O-ring 3
28 A210405000011 Washer 15
33 24001922 Air Filter 1 3-6
34 13060459 Oil Return Filter Cover 1
35 A210609000260 O-ring 1
36 A210111000038 Bolts 4
37 A210405000001 Washers 4
38 13060487 Oil Suction Pipe Cover 1
39 A250100000041 Level Gauge 1
40 13061020 Pedal 1
41 13060463 Pedal Bracket 1
42 A210111000091 Bolts 6
43 A210307000012 Nuts 6
44 A210111000040 Bolts 4
45 B210780000266 End Straight Connector 2
46 B210780000746 End Straight Connector 1
