60308535 Drive Axle

发布日期：2026-02-12

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#60308535 Drive Axle

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

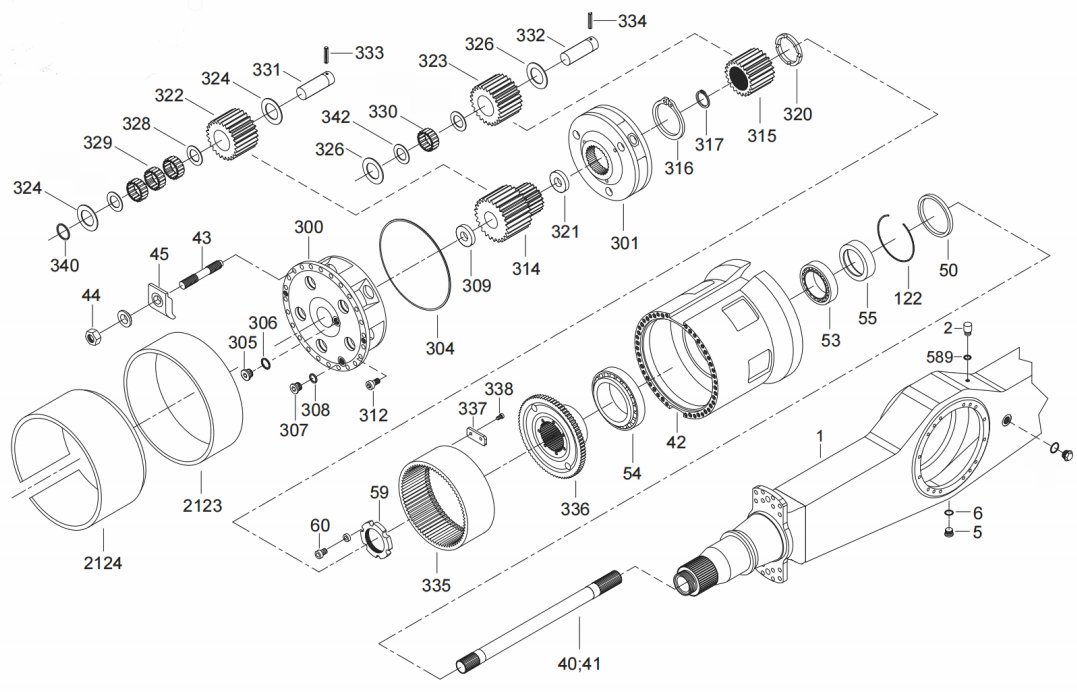

1 131488000072 Drive axle housing 1

2 60061416 Breather plug 1019-03-00 1

5 60099157 Plug 2

6 60099263 Sealing ring 2

40 60099180 Half shaft 2

42 60054025 Wheel hub 2

43 B229900002716 Double-ended bolt 48

44 B210334000023 Nut 48

45 60205584 Pressure plate 48

50 60099258 Sealing ring 4

53 131401020352A002 Tapered roller bearing 2

54 60099167 Tapered roller bearing 4

55 60099195 Spacer 2

59 60099179 Safety Nut 2

60 60099214 Socket Head Screw 2

122 60121071 Retaining Ring 2

300 60099175 Planetary Gear Housing 2

301 60120996 Planetary Gear Carrier 2

304 60099253 O-Ring 2

305 131401020352A008 Plug 2

306 131401020352A009 Sealing Ring 2

307 60099155 Plug 2

308 60121015 Sealing Ring 2

309 60099231 Thrust Ring 4

312 60099219 Socket head cap screw 44

314 60099171 Sun gear 2

315 60099172 Sun gear 2

316 60099199 Circlip 2

317 60121005 Elastic retaining ring 2

320 60099233 Thrust washer 2

321 131401020352A010 Thrust ring 2

322 60099174 Planetary gear 10

323 60099173 Planetary gear 6

324 60099230 Thrust washer 20

326 60099232 Thrust washer 12

329 60099163 Rolling bearing 10

330 60099162 Rolling bearing 6

331 60099235 Pin 10

332 60099236 Pin 6

333 60099226 Locking Pin 10

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#60308535 Drive Axle

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

334 131401020352A011 Locking pin 6

335 60099183 Gear ring 2

336 60121003 Gear ring bracket 2

337 60099178 Locking plate 6

338 131401020352A012 Bolt 12

340 60099252 O-ring 10

589 60223578 Sealing ring 3

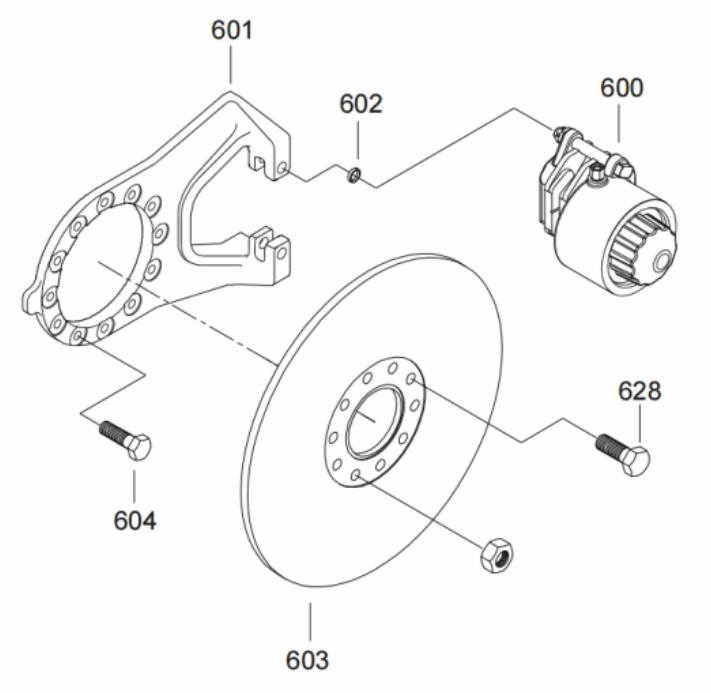

600 60006493 Brake 1

601 60006497 Brake Brake Bracket 1

602 60099247 O-ring 2

603 131401020352A023 Parking Brake Disc 1

604 60099207 Hex Screws 12

628 60223619 Bolts 6

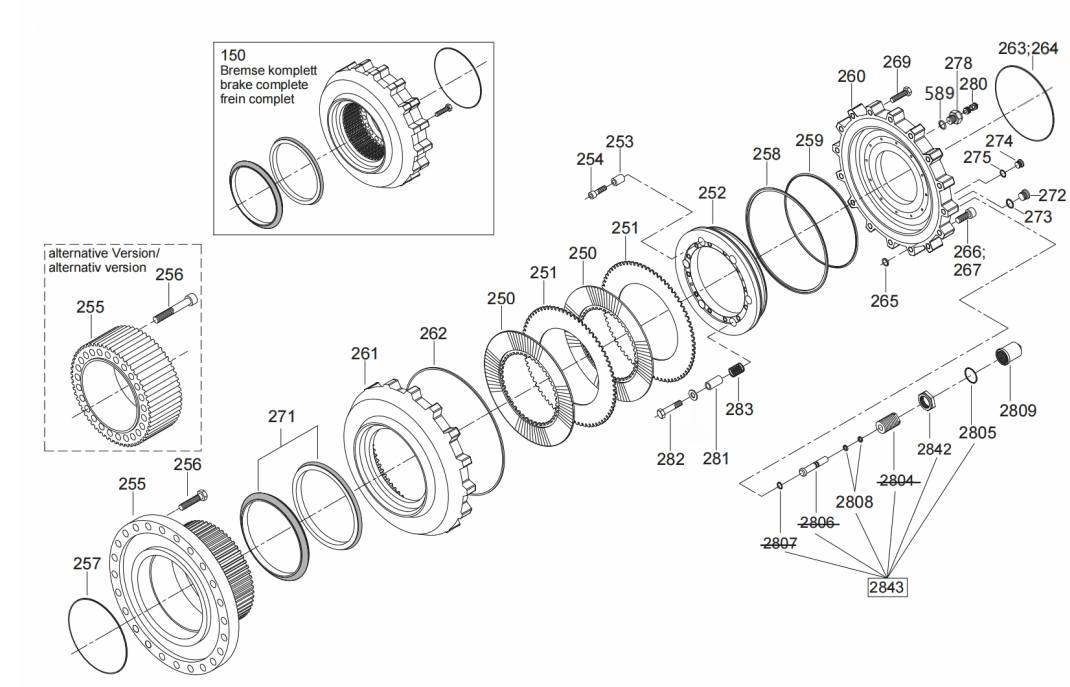

150 131401020352A003 Brake Assembly 2

250 60062647 Brake Friction Pad/Disc 16

251 60062646 Brake Steel Pad 16

252 60121008 Piston 4

253 60099227 Sleeve 4

254 60099215 Socket Head Screw 4

255 60099241 Brake Mount 2

256 131401020352A004 Bolt 48

257 60099251 O-Ring 2

258 131401020352A005 Seal 2

259 131401020352A006 Seal 2

260 60099240 Brake housing 2

261 60099239 Brake housing 2

262 60099254 O-ring 2

263 60099250 O-ring 2

264 60099249 O-ring 2

265 60099248 O-ring 6

266 60099218 Socket head cap screw 52

267 60099217 Socket head cap screw 8

269 60099211 Hex head screw 32

271 131401020352A007 End face seal 2

272 60099156 Plug 2

273 60099262 Sealing ring 2

274 60099154 Plug 2

275 60099260 Sealing ring 4

278 60099198 Connector 2

280 60099160 Exhaust valve 2

281 60099228 Sleeve 16

282 60099193 Flange bolt 16

283 60099185 Spring 16

589 60223578 Sealing ring 3

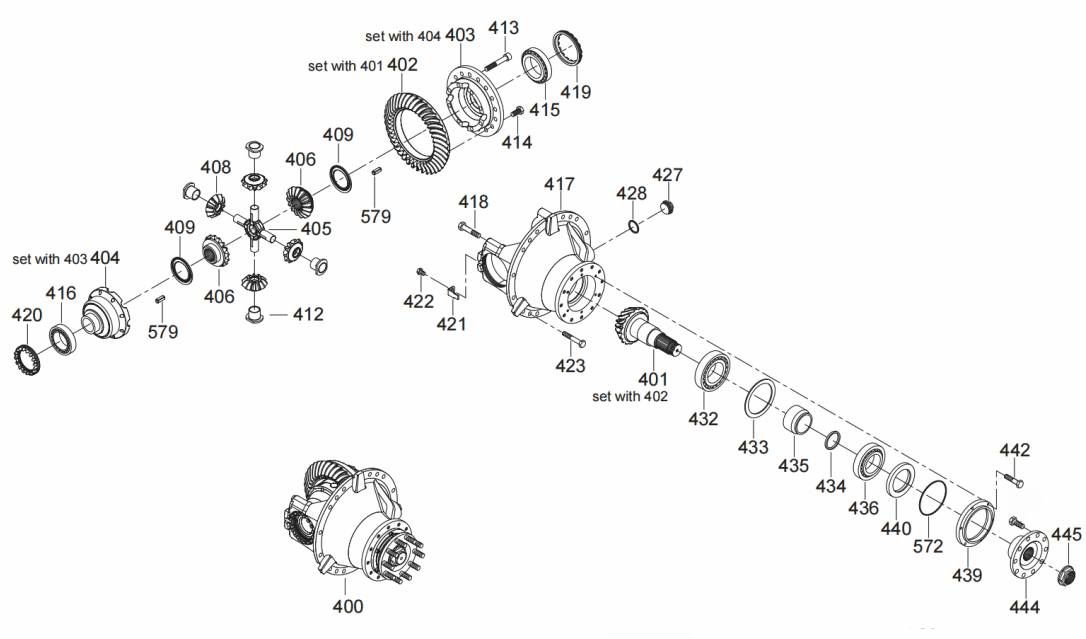

400 131499000009B002 Main reducer 1

401 60120995 Transmission pinion 1

402 60121002 Gear ring 1

403 131401020352A015 Differential housing 1

404 60120985 Differential chamber 1

405 60120999 Differential joint 1

406 60120994 Differential half-shaft gear 2

408 60120993 Differential gear 4

409 60121007 Flange 2

412 60121012 Bearing bushing 4

413 60121009 Hex bolt 12

414 60121010 Hex bolt 16

415 60121070 Tapered Roller Bearing 1

416 131401020352A017 Tapered Roller Bearing 1

417 60121000 Differential Bracket 1

418 60099205 Hex Screw 1

419 131401020352A018 Bearing Housing 1

420 60099190 Adjusting Nut 1

421 60099177 Locking Plate 2

422 60099210 Hex Screw 24

423 60099208 Screw 16

427 60099158 Plug 1

428 60099264 Sealing Ring 1

432 60120992 Tapered Roller Bearing 1

433 131401020352A019 Flat gasket 1

434 131401020352A020 Spacer 2

435 60121001 Bushing 1

436 60120991 Tapered roller bearing 1

439 60120987 Cover 1

440 60120989 Collar 1

442 60099220 Socket head cap screw 6

444 131401020352A021 Input flange 1

445 60006495 Fastening nut 1

572 60099246 O-ring 1

579 131401020352A022 Locking pin 6

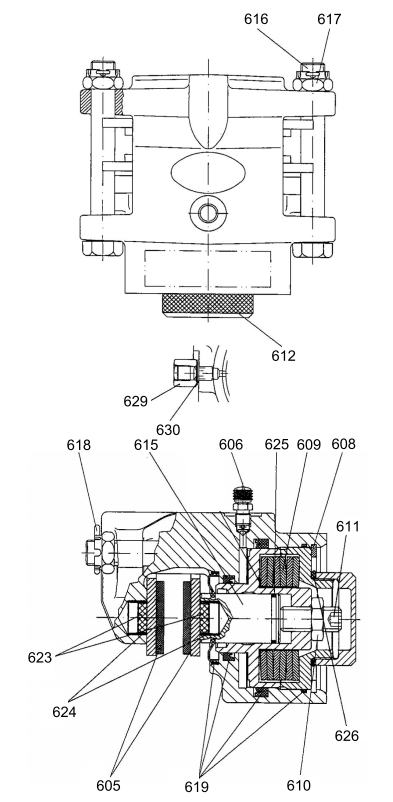

605 60016914 Brake pad 1

606 60099161 Exhaust valve 1

608 60099201 Snap ring 1

609 60099151 Disc spring 5

610 60099212 Hex nut 1

611 60099188 Adjusting screw 1

612 60099213 Nut cap 1

615 60099238 Pressure bolt 1

616 60099204 Hex screw 2

617 60099192 Slotted nut 2

618 60099203 Cotter pin 2

619 60099265 Oil seal 1

623 60099266 Magnet 2

624 131401020352A024 Tolerance Ring 2

625 60099244 O-ring 1

626 60099245 O-ring 1

629 131401020352A025 Screw Sleeve 1

630 60099259 Sealing Ring 1
