13487579 Electrical layout diagram for driver's cab

发布日期：2026-02-13

SANY Original spare parts

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

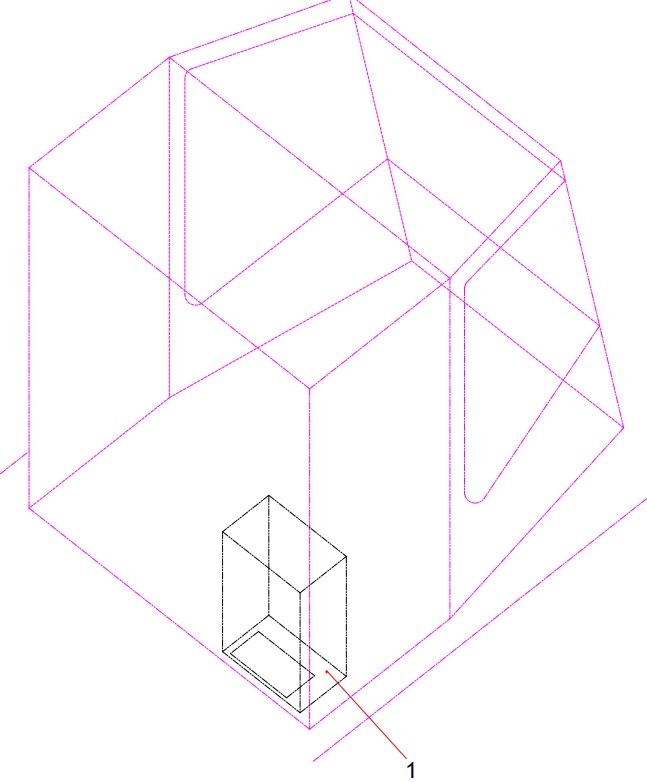

13487579 Electrical layout diagram for driver's cab

1 13120438 Cab Electrical Control Cabinet Assembly 1

2 14256480 Right Panel Wiring Harness 1

3 14317549 Right Panel System Diagram 1

4 14256503 Cab Front Wiring Harness/Wiring Diagram 1

5 13487572 Front Operation Panel Assembly 1

6 14317536 Air Conditioning Wiring Harness 1

7 13014972 Accelerator Pedal Wiring Diagram 1

8 14256501 Steering Gear Wiring Harness/Wiring Diagram 1

9 12907176 Steering Gear Wiring Diagram 1

10 14373456 Cab Rear Top Wiring Harness/Wiring Diagram 1

11 A241200000698 Push-Button Switch 2

12 60004572 Cable Connector 5

13 A229900004067 Cable clip 10

14 A241900000011 Multi-core cable 7

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#13487579 Electrical layout diagram for driver's cab

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

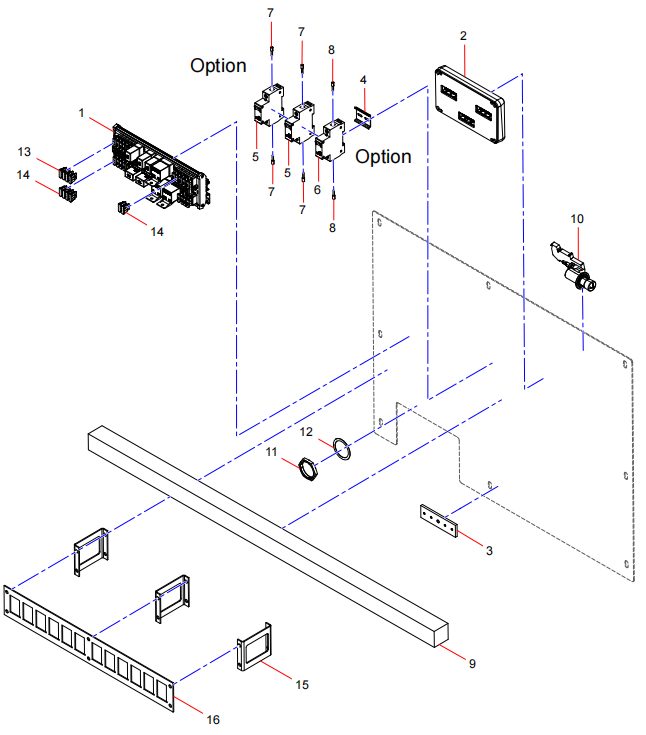

13120438 Cab electrical control cabinet assembly

1 14279880 Cab Electrical Control Cabinet Layout Diagram 1

1 60343179 Integrated Circuit 1

2 A810201206087 Sany Motion Controller Assembly 1

3 12561952 Forklift Grounding Copper Busbar (Modified) 1

4 A241600000011 Rail 1

5 A241200000221 Distribution Protection Circuit Breaker 2

6 A241200000220 Distribution Protection Circuit Breaker 1

7 60234180 Tubular Lug 4

8 60234182 Tubular Lug 2

9 60035696 Cable Tray 3

10 11447306 24V/10A Power Interface 1

11 60259773 Nylon Locking Ring 1

12 60259774 Metal Anti-Loosening Ring 1

13 B241300000020 Fuse 5

14 B241300000021 Fuse 7

15 13789120 Mounting Bracket 3

16 13789114 Connector Mounting Plate 1
