14317549 Right panel system diagram

发布日期：2026-02-13

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#14317549 Right panel system diagram

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

1 B241800000043 Symbol Card 1

2 B241800000009 Symbol Card 7

3 B241800000023 Symbol Card 1

4 B241800000046 Symbol Card 1

5 B241200000612 Rocker Switch 1

6 A241200000539 Rocker Switch 6

7 60063150 Rocker Switch 7

8 A249900000513 Side Single Frame 6

9 A249900000514 Middle Single Frame 9

10 A249900000518 Cover Plate (Five-gang Switch) 6

11 B241800000001 Symbol Card 1

12 B241200000030 Ignition switch 1

13 B240500000009 Alarm 1

14 B241200000484 Rotary switch 1

15 B240200000081 Contact module 1

16 60271427 Center block 1

17 60263159 Normally closed contact 3

18 60263158 Normally open contact 1

19 60269944 Pushbutton switch 1

20 A241900000055 Wire 40

21 A239900000563 Corrugated tubing 2

22 A241400000018 Heat shrink tubing 6

23 13099978 Handle mounting plate 1

24 13870551 21-pin sheathed female brown assembly 1

25 B241200000028 Rocker switch 1

26 142601000003A Electric operating handle assembly 1

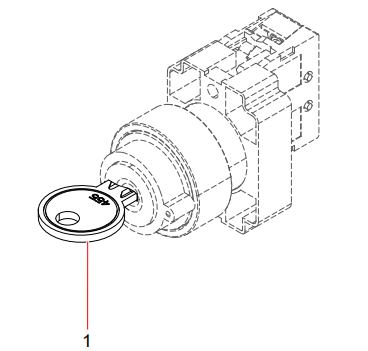

B241200000484 Rotary switch

1 148800000001A Rotary switch key 1
