14315923 Electrical Layout Diagram of Vehicle Chassis

发布日期：2026-02-13

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#14315923 Electrical Layout Diagram of Vehicle Chassis

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

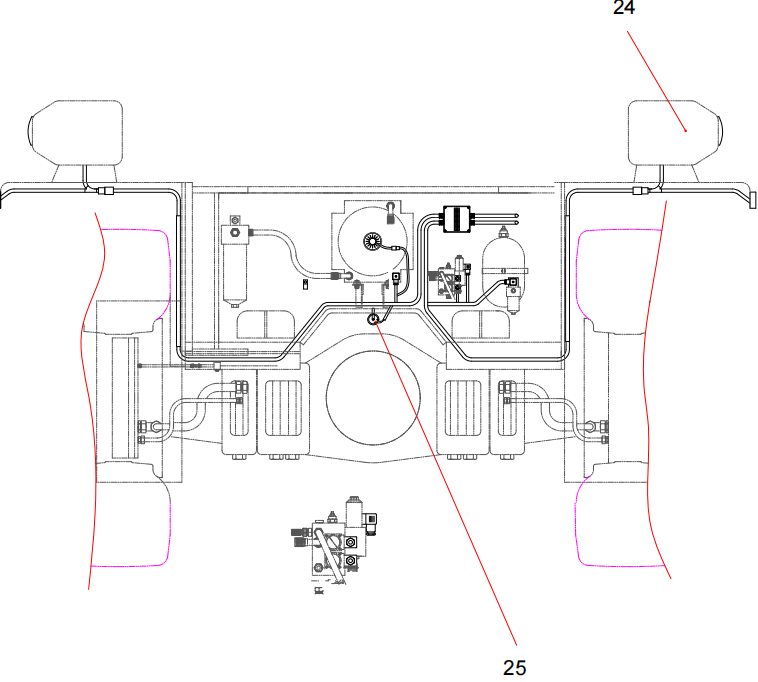

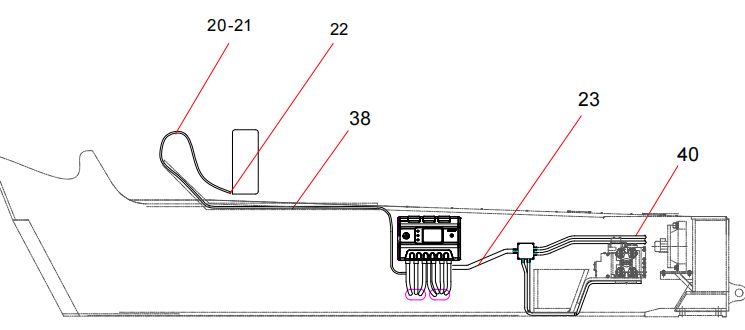

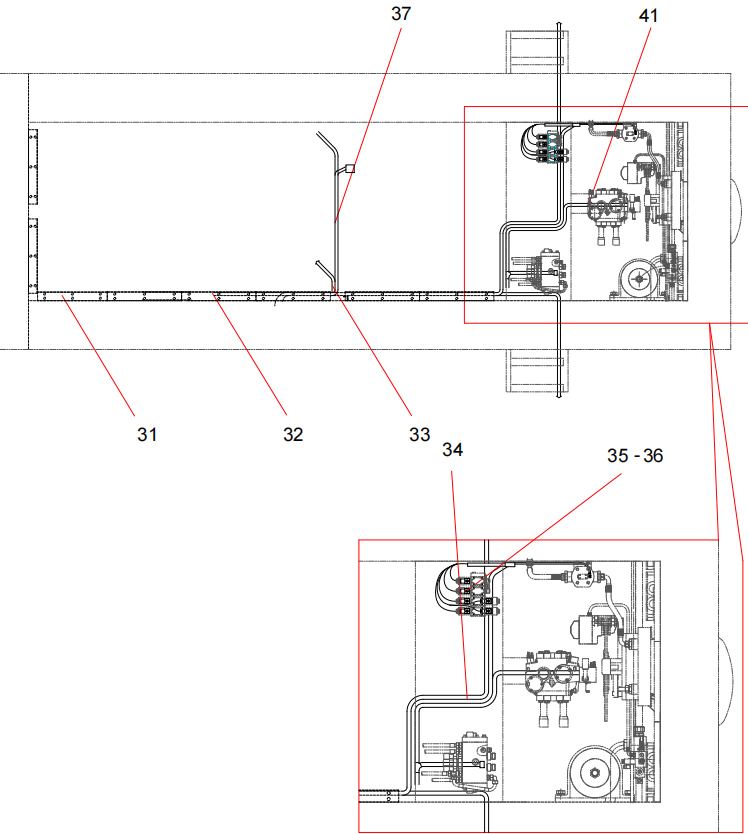

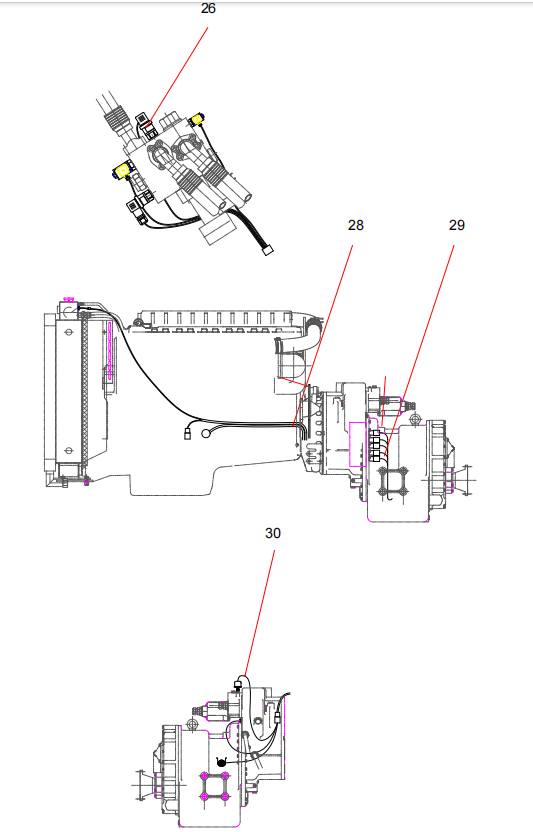

14315923 Electrical Layout Diagram of Vehicle Chassis

1 12895513 LED Work Light 4

2 12901982 LED Taillight Assembly 2

3 12901990 LED Side Marker Light 2

4 12916541 Proximity Switch 1

5 60165334 Pipe Clamp 2

6 60111064 Nut 2

7 A210204000139 Screw 2

8 14256504 Slant Arm Wiring Harness 1

9 12912669 Liquid Level Sensor Assembly 1

10 14256502 Rear Chassis Wiring Harness/Wiring Diagram 1

11 12934766 Power Switch 1

12 14256498 Battery Box Wiring Harness 1

13 12934743 Battery 1

14 13275833 Fastening Clip 21.2 Assembly 30

15 13275826 Fastening Clip 13.0 35

16 14316199 Vehicle Frame Electrical Control Cabinet Assembly 1

17 12912711 Temperature Sensor 1

18 12912717 Temperature Sensor 2

19 12912580 Multi-tone Speaker Assembly 1

39 13479570 2-pin Dechter Socket 4

42 B240700000378 Battery Relay 1

43 60034670 Chassis Distribution Box Assembly 1

45 60227843 Fuse 1

46 60227845 Fuse Base 1

20 14256490 Cable Carrier Harness 1

21 14256477 Cable Carrier Harness 2

22 14279629 Cable Carrier Harness 3/Wiring Diagram 1

23 14256478 Front Wiring Harness of Chassis 1

38 A241000000025 Intermediate Connector 40

40 13127423 Pressure Sensor 1

24 13940546 LED Headlight Assembly 2

25 12912575 Monophonic Speaker Assembly 1

26 14190503 Pressure Sensor 4

28 14279677 Power Harness/Wiring Diagram 1

29 14256497 Torque Converter Gear Solenoid Valve Harness 1

30 13127421 Pressure Sensor 1

31 A810201055737 Vehicle body cable bracket assembly drawing 1

32 60119462 Cable tie 95

33 13275836 Fastening clamp 34.5 System diagram 20

34 13426722 Vehicle frame welding stud welding drawing 1

35 B229900002528 Plug 35

36 B229900001096 Sealing plug 29

37 13577240 Main power fuse 1

41 14216658 Wiring harness bracket 1
