60349727 Oil pan assembly

发布日期：2026-02-16

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

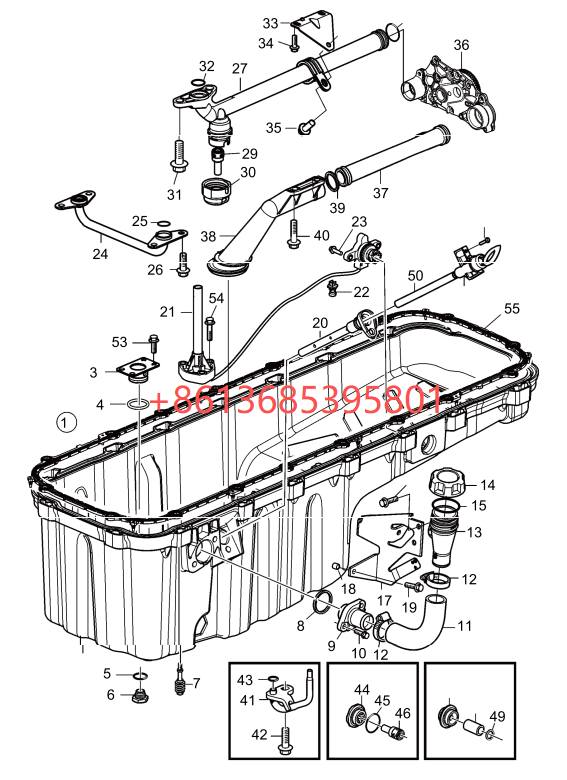

60349727 Oil pan assembly

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

1 60344650 Oil pan assembly 1

3 60199137 Positioning plate 1

4 60132369 O-ring 1

5 60094790 Washer 1

6 60094806 Oil pan bolt 1

7 60203758 Flange bolt 18

8 60344651 Sealing ring 1

9 60199139 Connecting pipe 1

10 60203735 Flange bolt 2

11 Hoose 1

12 60344652 Pipe clamp 2

13 60066480 Oil filler hose 1

14 60131406 Filler cap 1

15 B230101001205 Filler cap sealing ring 1

17 60344653 Bracket 1

18 60344654 Spacer 2

19 60228921 Flange Bolt 1

20 60091443 Oil Dipstick Mount 2

21 60285663 Oil Level Sensor 1

22 60129918 Clamp 2

23 60203739 Flange Bolt 2

24 60344655 Pipe 1

25 60092704 Sealing Gasket 2

27 60344656 Valve Body 1

29 60344657 Pressure Reducing Valve 1

30 60344658 Pipe 1

31 60203805 Flange Bolt 2

32 60097195 Sealing Ring 1

33 60344659 Bracket 1

34 60344660 Nut 6

35 60203765 Flange Bolt 1

36 60344661 Oil Pump 1

37 60344662 Pipe 1

38 60344663 Oil Sump 1

39 60094813 Washer 2

40 60199258 Flange Bolt 6

41 60344664 Piston Cooling Nozzle 6

42 60344627 Flange Bolt 6

43 60199146 O-Ring 6

44 60129785 Cap 1

45 60094496 Sealing gasket 1

46 60344665 Valve 1

49 60132452 Sealing ring 1

50 60330116 Oil dipstick 1

53 60203734 Flange bolts 4

54 60094398 Bolts 3

55 60093492 Oil pan gasket 1
