13572118 Heat dissipation assembly

发布日期：2026-02-17

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

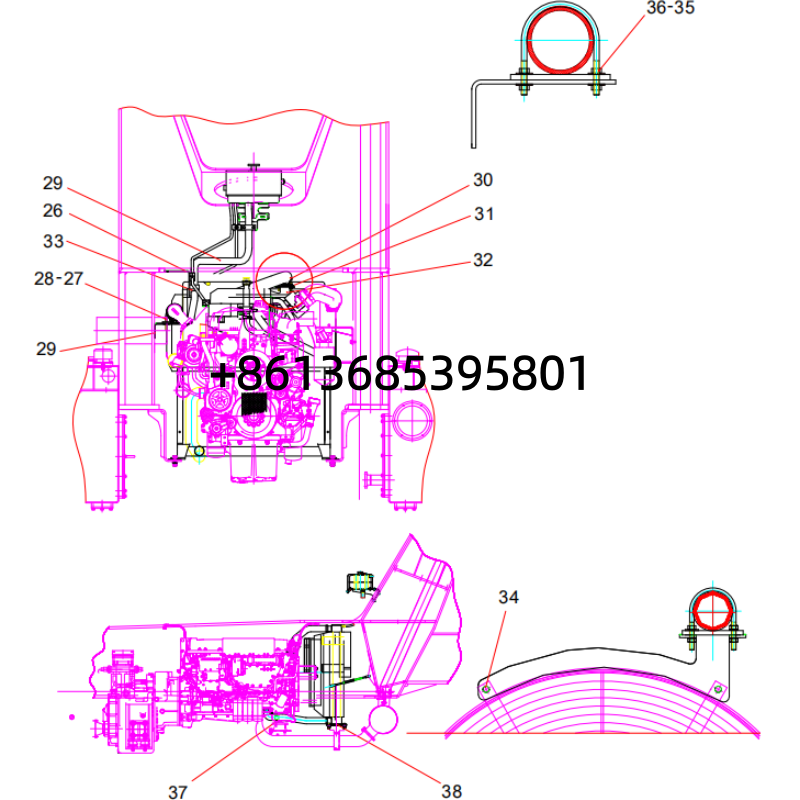

13572118 Heat dissipation assembly

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

1 11597891 Plastic expansion tank assembly 1

2 60000075 Radiator 1

3 A210307000017 Nut 2

4 10840468 Support rod 2 2

5 A210111000025 Bolt 2

6 A210401000001 Spring washer 2

7 A210405000011 Washer 2

8 A210308000007 Nut 2

9 A820202005885 Adjusting rod 2

10 A820302010400 Left-hand nut 2

11 A210111000011 Bolt 2

12 13816368 Support rod (1) 2

13 10348513 Water tank shock absorber pad 2

14 A210307000040 Nut 4

15 A210401000004 Spring washer 4

16 A210405000003 Washer 4

17 A210111000290 Bolt 4

18 13572218 Engine inlet pipe 1

19 B229900003113 Fan 1

20 12067121 Fan transition plate 1

21 A229900003104 T-clamp 4

22 13572144 Engine outlet pipe 1

23 A210405000007 Washer 6

24 A210401000017 Spring washer 6

25 A210111000089 Bolt 6

26 14231546 Drain pipe bracket 1

27 14231502 U-bolt 1

28 14231501 Vibration damping pad 1

29 14231499 Bracket 1

30 14231543 U-shaped pipe clamp 3

31 14231506 Rubber pad 3

32 14231505 Elbow plate 1

33 60165346 Pipe clamp 1

34 A210111000023 Bolt 2

35 A210307000012 Nut 16

36 A210404000005 Washer 16

37 14231545 Water pipe support 1

38 14231544 Water pipe support 1
