13744481 Heat dissipation and braking system

1 B220401000263 Ball Valve 1

2 11746748 Hose 1

3 60258781 High Pressure Filter 1

4 A810201069499 Brake Valve Component Drawing 1

5 B230103000443 Hose 1

6 B230103000315 Hose 1

7 B230103003027 Hose Assembly 1

8 B210780000647 Straight-through Partition Fitting 2

77 B230103000391 Hose Assembly 1

90 B210780000016 Tee Combination Fitting 5

91 B210780000037 End Straight-through Fitting 1

92 B210780001384 Plug 1

93 24004982 Bladder Accumulator 1

13744481 Heat dissipation and braking system.png

24 B230103000380 Hose Assembly 1

25 B210780001310 Right Angle Combination Fitting 6

26 13744333 Cooling Conversion Valve Block 2

27 60027411 Hose 1

28 B210780000232 End Straight Connector 3

29 B210780000131 End Straight Connector 6

30 B230103004374 Hose 1

31 60282297 Gear Motor 1

32 B210780000847 End Straight Connector 3

33 B210780000164 Screw Plug 1

34 60230597 Manual Hydraulic Pump 1

35 60029233 Pipe Clamp 1

36 60165875 Pipe Fitting 2

37 60151475 Rubber Hose 1

38 B230103000442 Rubber Hose 1

39 A210204000196 Screw 6

40 B210852000003 Pipe Clamp 4

41 B230103000474 Rubber Hose Assembly 2

42 60222700 Straight-through Fitting 1

43 B210780000631 Tee Combination Fitting 1

44 A210204000008 Screw 2

45 A210405000011 Washer 10

46 A210401000001 Spring Washer 10

80 B230103000383 Hose Assembly 1

81 14088601 Accumulator Identification Plate 1

82 B230103004373 Hose 1

83 B230103004341 Hose 1

84 B210780000115 Straight-through Combination Fitting 2

85 60347544 Hose 1

86 10943147 Accumulator Fitting 1

87 B230103000478 Hose Assembly 1

88 B210840000015 Pipe Clamp 2

89 B230103004624 Hose 1

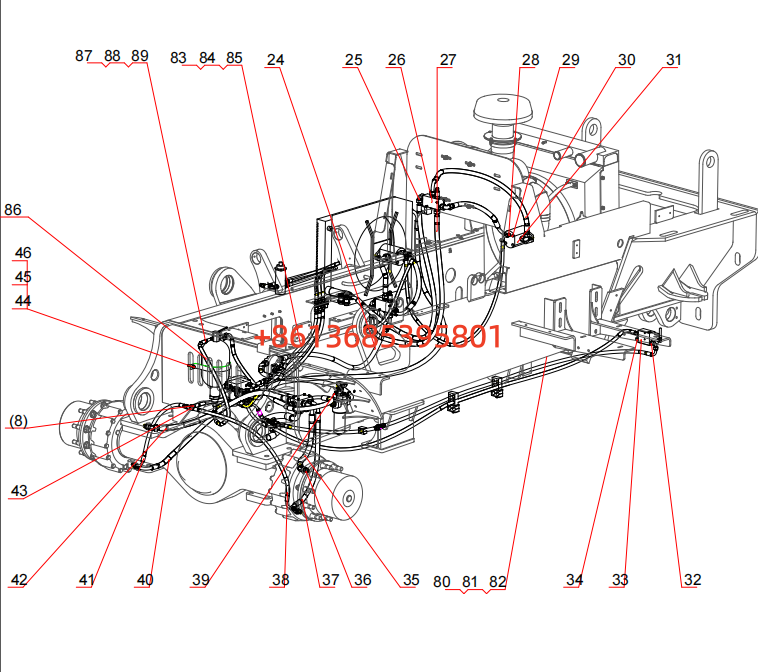

13744481 Heat dissipation and braking system-1.png

47 60039097 Hose 1

48 21032355 Hose 1

49 60069565 Butt-fit reducing fitting 2

50 B230103004249 Hose 1

51 60019592 Hose 2

52 12801048 Heat dissipation assembly 1

53 B230103003666 Hose 1

54 B230103002384 Hose 1

55 21033030 Hose 1

56 B230103008159 Hose assembly 1

57 B230103002844 Hose assembly 1

58 B230103002387 Hose assembly 1

59 B230103004101 Hose Assembly 1

60 14453629 German Brake Valve Assembly 1

61 B210780000636 Right Angle Combination Connector 1

62 B210780000036 End Straight Connector 2

63 B210780001048 End Straight Connector 1

64 13159789 Flushing Block Sub-assembly Drawing 1

65 A210204000147 Screws 2

66 A210405000007 Washers 2

67 A210401000017 Spring Washers 2

68 B230103000453 Hose 1

69 10996273 Accumulator Clamp 1

70 B230103005846 Hose Assembly 1

71 B210780000184 Straight-through Connector 1

72 13744542 Check Valve 1

73 B210780000683 Butt-fit Reducer 2

74 11769326 Filling Valve Assembly 1

75 A210204000161 Screw 2

76 B230103006930 Hose 2

77 B230103000391 Hose Assembly 1

78 B230103001241 Hose 1

79 B230103000388 Hose Assembly 1

79 12912754 Pressure Sensor 1

13744481 Heat dissipation and braking system-2.png
