12680989 Steering axle assembly

1 A210111000088 Bolt 36

2 A210401000017 Spring Washer 84

3 13821145 Rim Cover 2

4 13823337 Sealing Gasket 2

5 A210501000016 Pin 2

6 10072950 Double-ended Bolt 10

7 A210405000009 Washer 20

8 A210308000008 Nut 20

9 11847966 Wheel Hub 2

10 A210304000017 Nut 4

11 A210412000001 Washer 2

12 10040814 Bearing Retaining Ring (I) 2

13 A210604002254 Rolling bearing 2

14 A210858000021 Wheel rim 2

15 A210881000076 Tire 2

16 A210604002245 Rolling bearing 2

17 A820202004672 Bearing retainer ring (II) 2

18 A230101000302 Rotary shaft lip seal 2

19 A820101331839 Oil seal gland 2

20 A210805000003 Oil cup 18

62 13701537 Tire bolt protection plate 2

63 13689684 Long double-ended stud 10

64 A210310000007 Nut 10

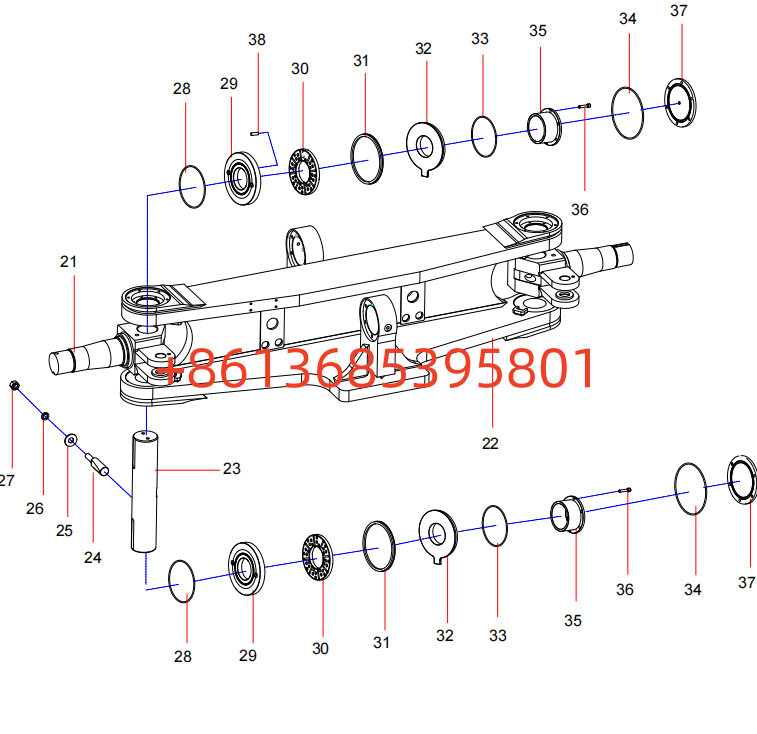

21 11847963 Steering knuckle 2

22 12680082 Steering bridge 1

23 12680572 Steering pin 2

24 10506526 Diagonal pin 2

25 A820102010535 Diagonal pin washer 2

26 A210401000004 Spring washer 2

27 A210307000028 Nut 2

28 A210609000007 O-ring 4

29 10448276 Shim 4

30 10448041 Sliding bearing washer 4

31 60004882 VDA oil seal 4

32 10997949 Bearing cover 4

33 A210609000174 O-ring 4

34 A210609000303 O-ring 4

35 10997951 Bushing 4

36 A210111000323 Bolt 24

37 10997956 Shaft Pin Cap 4

38 10371349 Pin 8

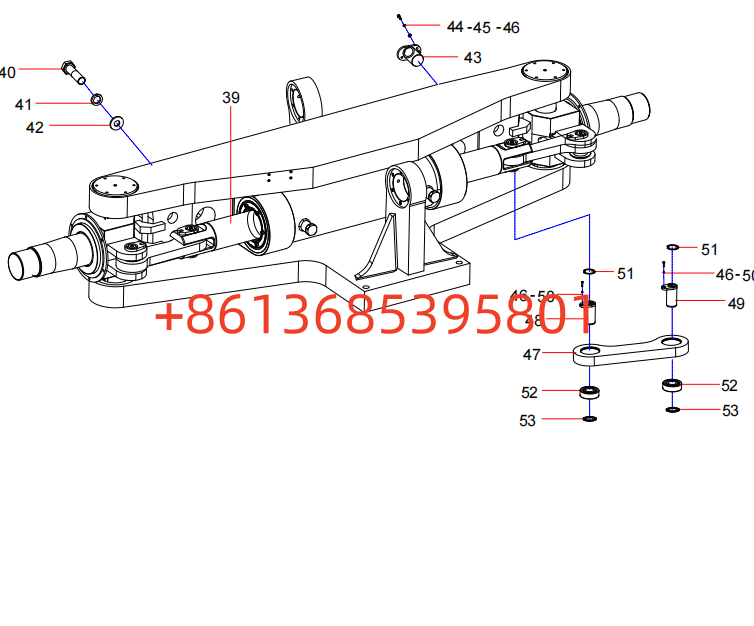

39 11872663 Steering Cylinder 1

40 12680906 Cylinder Fixing Bolt 8

41 A210401000011 Spring Washer 8

42 A210405000014 Washer 8

43 12680635 Cylinder Locating Pin Assembly 1

44 A210111000204 Bolt 1

45 A210401000002 Spring Washer 25

46 A210405000001 Washer 5

47 12680492 Connecting Rod 2

48 10854886 Connecting Rod Pin Assembly 2

49 11772045 Connecting Rod Pin Assembly 2

50 A210111000101 Bolt 4

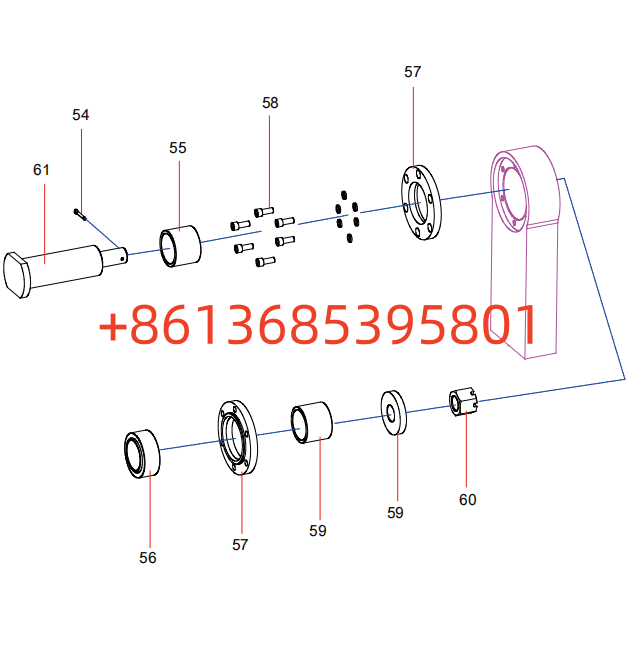

51 A210416000037 Retaining ring 8

52 A210612000023 Spherical plain bearing 4

53 10040820 Retaining ring 8

54 A210491000023 Pin 2

55 A820202003384 Bushing 4

56 A221500000195 Spherical Plain Bearing 2

57 A820201000724 Bearing End Cap 4

58 A210204000021 Screw 24

59 A820102010533 Washer 2

60 A210356000006 Nut 2

61 14197182 Shaft 2
