13442847 Body Panel Assembly

发布日期：2026-02-23

SANY Original spare parts

#SANY Original spare parts

#Sany SCP160G Counterbalance Forklift

WhatsApp: 136 8539 5801

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

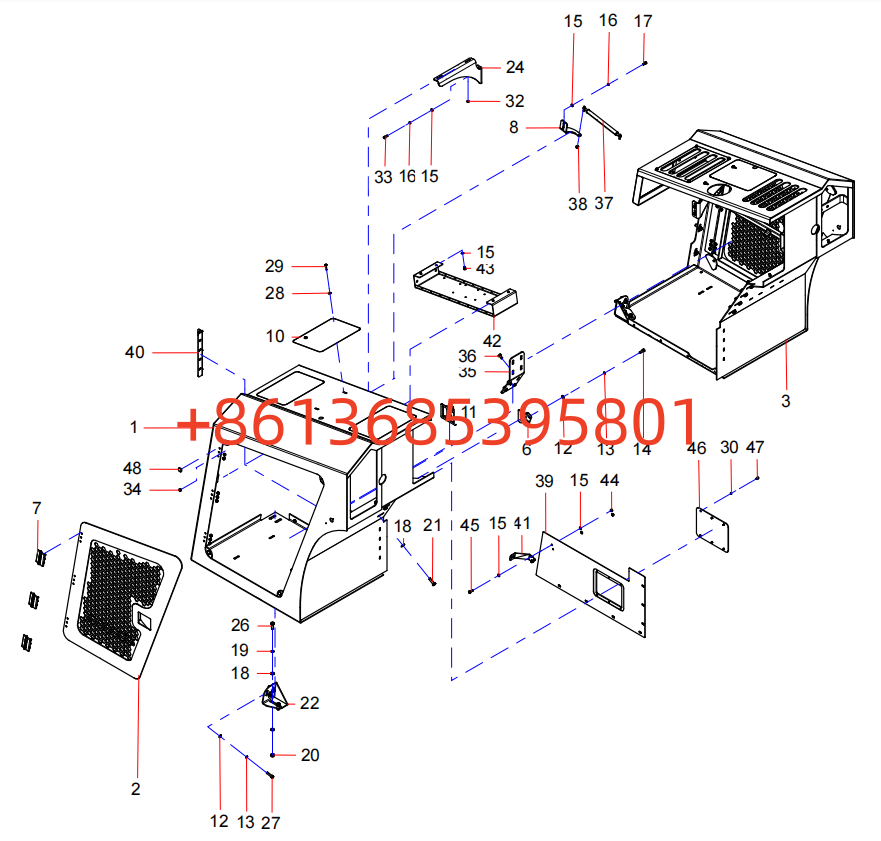

13442847 Body Panel Assembly

1 12734133 Left door frame 1

2 12734140 Left door panel 1

3 12734143 Right door frame 1

6 13514912 Door lock connecting plate 1

7 60013637 Hinge 6

8 12734119 Left gas spring support plate 1

10 10049665 Anti-slip pad 4

11 A222200000042 Door lock 2

12 A210405000011 Washer 14

13 A210401000001 Spring washer 14

14 A210204000161 Screw 4

15 A210405000007 Washer 54

16 A210401000017 Spring Washer 24

17 A210204000146 Screw 4

18 A210405000001 Washer 30

19 A210401000002 Spring Washer 18

20 A210307000001 Nut 12

21 A210111000040 Bolt 14

22 12734149 Left Cover Connector Plate 1

24 12790970 Left Cover Bracket 1

26 A210111000039 Bolt 4

27 A210204000008 Screw 6

28 A210404000009 Washer 4

29 A210111000082 Bolt 4

30 A210405000006 Washers 18

32 A210307000016 Nuts 4

33 A210204000147 Screws 4

34 A210319000004 Nuts 36

35 12792967 Hand-cranked pump bracket 1

36 A210111000011 Bolts 4

37 60196763 Gas springs 2

38 A210336000004 Nuts 2

39 14422095 Urea tank insulation plate assembly 1

40 13441492 Support plate one 1

41 13441493 Support plate two 1

42 13441494 Controller mounting plate 1

43 A210111000240 Bolts 4

44 A210307000012 Nuts 25

45 A210111000090 Bolts 13

46 13451960 Heat Insulation Board Sealing Plate 1

47 A210111000078 Bolt 6

48 11360286 Elastic Washer 8

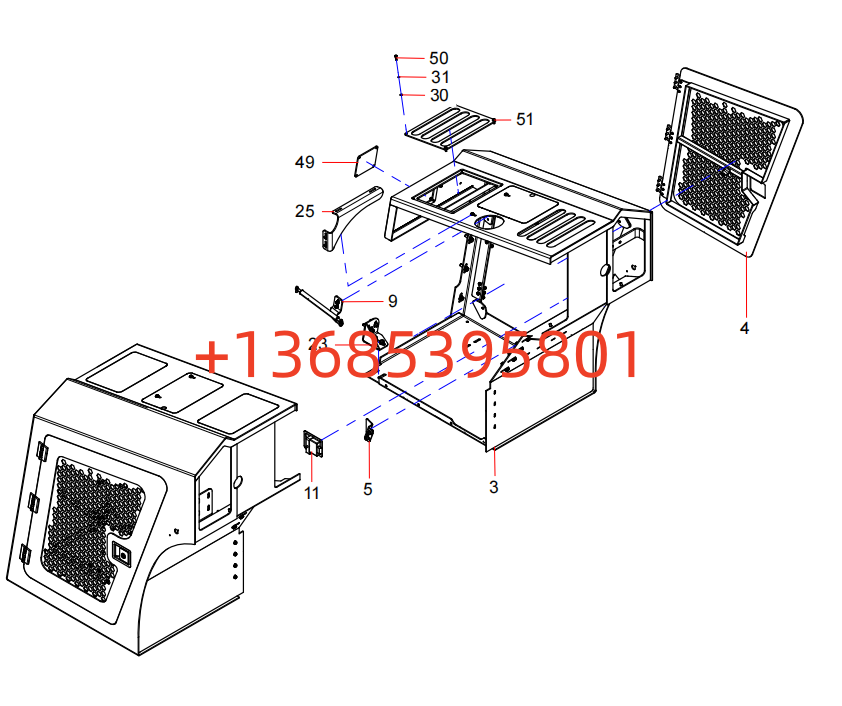

3 12734143 Right door frame 1

4 12734145 Right door panel 1

5 13514918 Door lock connecting plate 1

9 12734120 Right gas spring support plate 1

11 A222200000042 Door lock 2

23 12734153 Right cover connecting plate 1

25 12790976 Right cover bracket 1

30 A210405000006 Washer 18

31 A210401000016 Spring washer 12

49 13686481 Cover plate 1

50 A210111000080 Bolt 8

51 SCP004817418 Cover plate
