#160102100004B169 Gear Transmission Combination Group

#160102100004B169 Gear Transmission Combination Group #Sany 955K Electric Loader

#SANY Original spare parts

#Sany 955K Electric Loader

WhatsApp: 136 8539 5801

160102100004B169 Gear Transmission Combination Group.png

1 60272560 Hose Of Diameter 25 Turn 19 1

2 60326584 Hex Head Bolt 4

3 60127717 Spacer 1

4 60326585 Hex Head Bolt 4

5 60326587 Hex Head Bolt 1

6 60272614 Idling Gear Shaft 1

7 60272962 Sealing Ring 1

8 60272869 Wire 1 16-4

9 60272616 Middle Gear Assembly 1

10 60272618 Shaft 1

11 60272615 Idling Gear Shaft 1

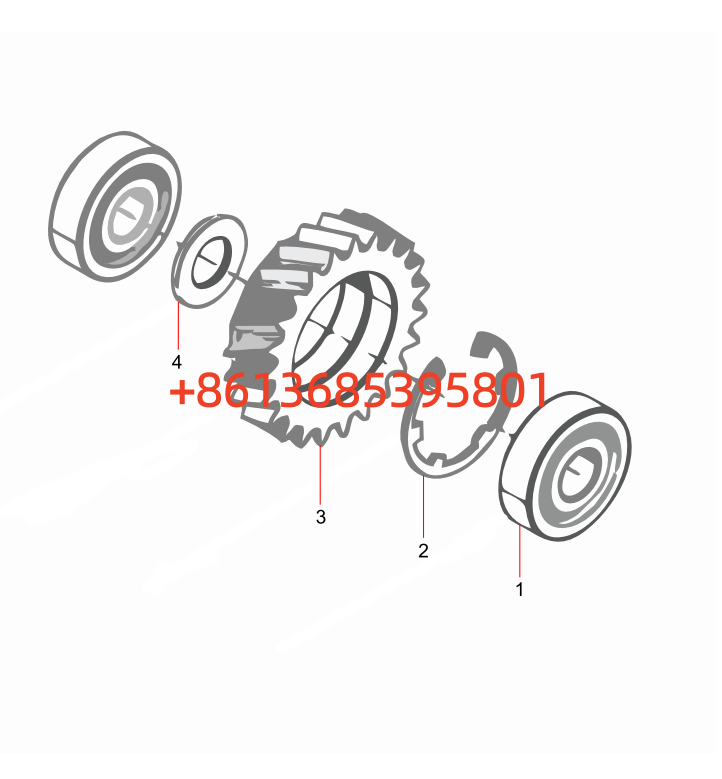

60272869 Wire.png

60272869 Wire

1 60272576 Centripetal Ball Bearing 2

2 60272817 Retaining ring with convex teeth for hole 1

3 60272868 Engine Oil Pump Intermediate Gear 1

4 60272617 middle spacer ring 1

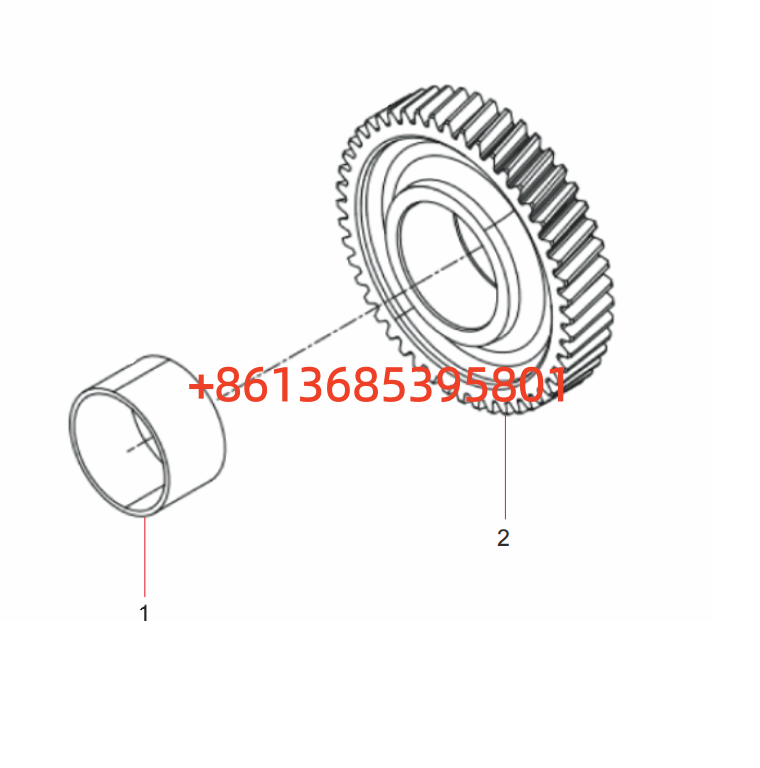

60272616 Middle Gear Assembly

1 60272813 Gear Liner 1

2 60272613 Idling Gear 1

60272616 Middle Gear Assembly.png
