#13309176 JRSR03 Fully Hydraulic Single Drum Roller Cab Main Body

发布日期：2026-03-12

#13309176 JRSR03 Fully Hydraulic Single Drum Roller Cab Main Body

#SANY Original spare parts

#SANY Original spare parts

#SANY SSR220AC-8 Sany Single Drum Roller

#SANY #Roller #Road Roller #SSR220AC-8

#QualityChangestheWorld #sanyparts #Sany road roller #sany

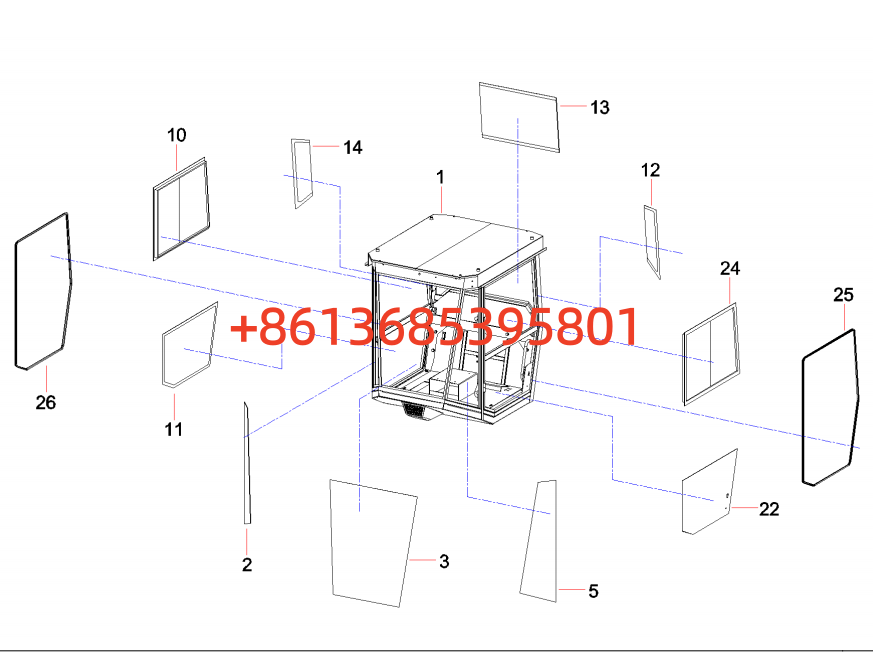

13309176 JRSR03 Fully Hydraulic Single Drum Roller Cab Main Body

1 13310218 Cab Body 1

2 13302871 Right Front Window Glass JRSR03.3 1

3 13302851 Front Window Glass JRSR03.1 1

5 13302866 Left Front Window Glass JRSR03.2 1

10 13301435 Right Sliding Window 1

11 13303155 Right Door Lower Glass JRSR03.8 1

12 13303134 Left Rear Window Glass JRSR03.5 1

13 13303132 Rear Window Glass JRSR03.4 1

14 13303147 Right Rear Window Glass JRSR03.6 1

22 13303153 Left Door Lower Glass JRSR03.7 1

24 13301436 Left sliding window 1

25 13316813 Left door weatherstripping 1

26 13316814 Right door weatherstripping 1

4 13317415 Electrical Assembly 1

7 11710459 Rearview Mirror Bracket Assembly 2

8 60119431 Rearview Mirror Assembly SL- 2

9 60024135 Handle 1

15 12967975 Cab Door Sill Handle Assembly SJC62II100EB3.6010.12 1

27 11270627 Body Badge 1

29 A210210000007 Screws 6

30 A210405000007 Washers 10

31 A210401000017 Washers 8GB93 14

32 A210210000008 Screws 28

33 A210405000006 Washers 40

34 A210401000016 Washer 6GB93 40

35 A210491000001 Screw M20GB825 4

6 60110667 Protective Cap 8

16 A229900009879 Gas Spring 2

17 60066748 Plastic Cap M8 4

18 11262101 Door Positioning Strip 2

19 A31907100070B Pin 4

20 A210491000009 Pin 2×16GB91-00GB91 4

21 13317075 Bottom Sound Absorbing and Heat Insulating Cotton 1

23 12243888 Single Steel Wheel Cab Lock Assembly 1

28 A210307000012 Nut M8GB6170 4

31 A210401000017 Washer 8GB93 14

32 A210210000008 Screw 28

33 A210405000006 Washer 40

34 A210401000016 Washer 6GB93 40

36 A210111000080 Bolt M6×20GB5783 4

37 A210210000005 Screw 8

38 60014124 Fastening rivet 46

39 60042056 Plug 4
