27200170771 Power cord P50*650 for LGMG spare parts

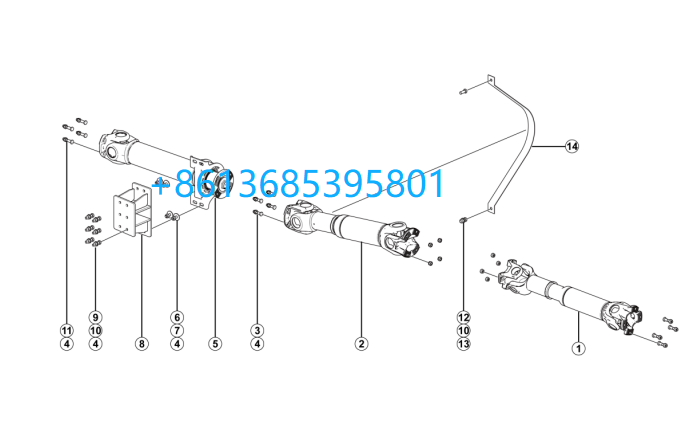

4110708617

Center drive shaft  lg09-qcdz-910

4011011613

Bolt gb5785-m14*1.5*55flznyc-12.9-480

4013010568

Nut gb6185.2-m14*1.5flznyc-12-480

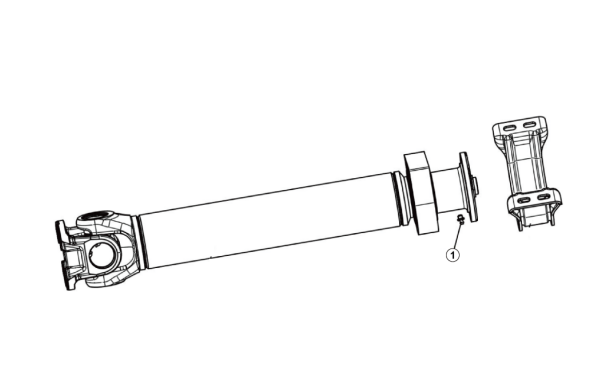

4110708470

Front drive shaft lg09-qcdz-915

4011010551

Bolt gb5786-m14*1.5*40flznyc-12.9-480

4015010371

Washer gb96.1-14flznyc-300hv-480

27090108741

Drive shaft mounting bracket wldmt

4011010642

Bolt gb5786-m14*1.5*50flznyc-12.9-480

4015000177

Washer gb97.1-14epzn-300hv

4011010942

Bolt gb5785-m14*1.5*65flznyc-12.9-480

4011000191

Bolt gb5783-m14*35epzn-8.8

4013010121

Nut gb6185.1-m14epzn-8

27090102791

Rear the thrusting rod mounting assembly

4110705471005

Grease nipple gb1152-m6

null

1

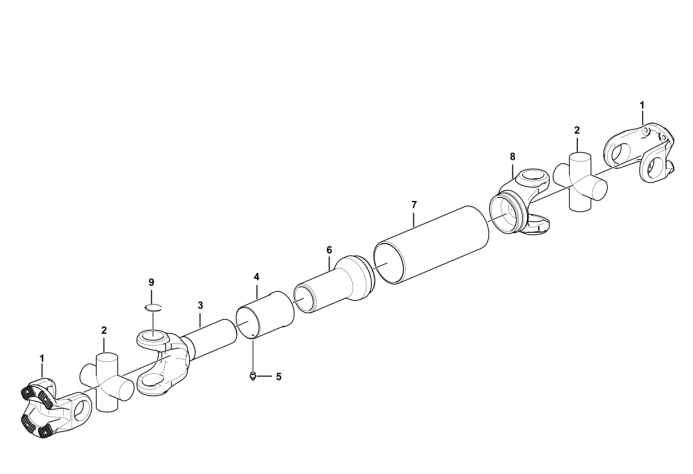

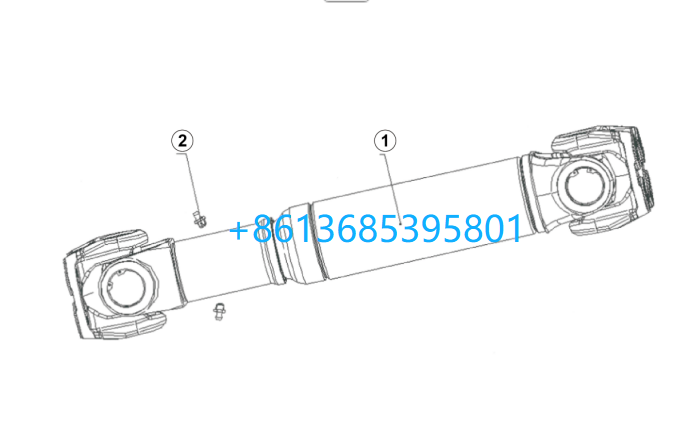

4110001384002

Cross shaft 5701-57152-t

4110001384003

Spline shaft fork 5064100002-2-l

4110000822005

Sheath pipe 3954100483-b

4110001048006

Grease nipple m6

4110001384004

Spline hub nl57011201114

4110001384005

Shaft tube φ120*5

4110000186012

Cardan fork 57011201301

4110000186002

0069942941 circlip

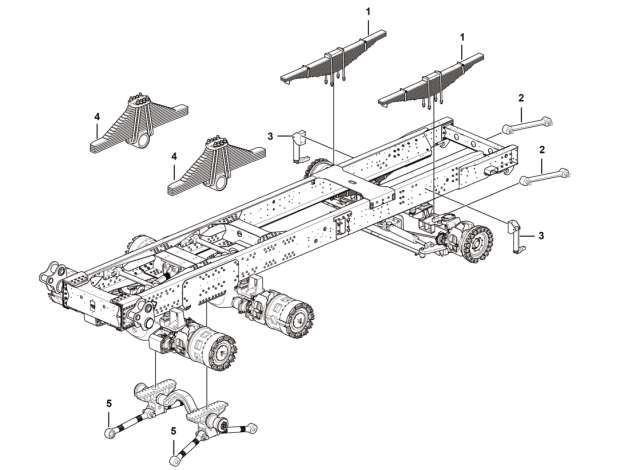

27120114131

Front thrust rod install assembly

27120114141

Shock absorber assembly

27120123241

Rear the spring assembly

27120122471

Rear the thrusting rod mounting assembly

27120114992

Wearing piece

27120113681

Cushion block

27120100211

Bolt protection tube

27120100221

Bolt

4011010405

Bolt gb5786-m12*1.25*45epzn-8.8

4011010497

Bolt gb5785-m18*1.5*70flznyc-12.9-480

4011010505

Bolt gb5785-m18*1.5*85flznyc-12.9-480

4013010239

Nut gb6185.2-m18*1.5flznyc-12-480

4013010254

Nut gb6170-m16flznyc-12-480

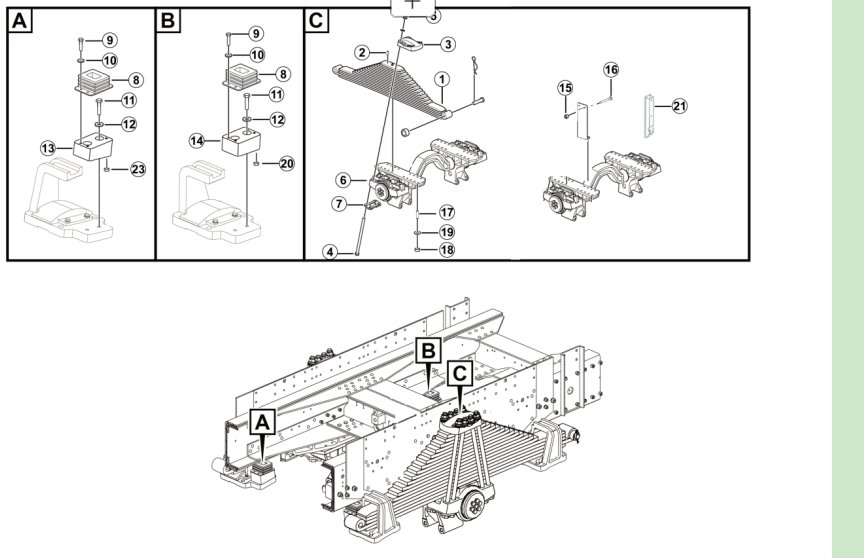

27120105414

Washer gb1230-18-45

4015000168

Washer gb97.1-12epzn-300hv

27120115601

Spring pressing block

Y

2

27120115611

Bolt

Y

8

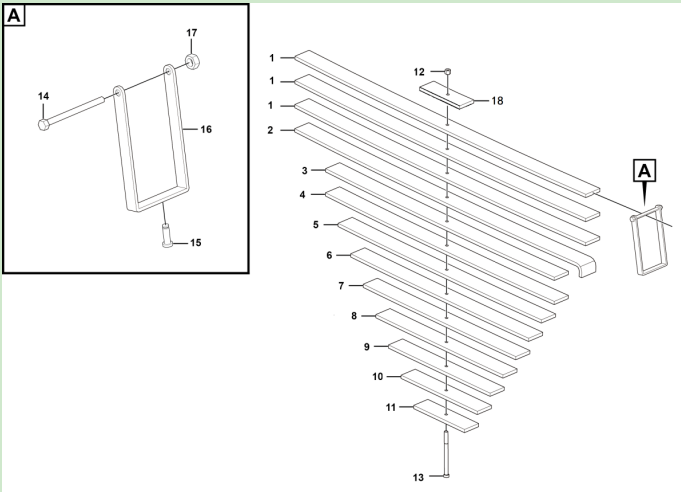

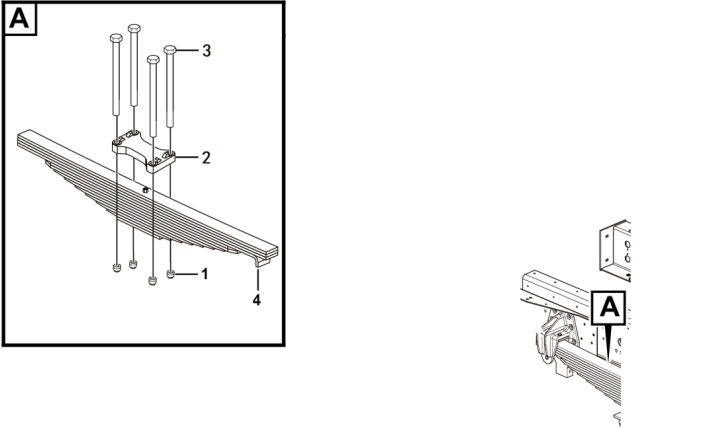

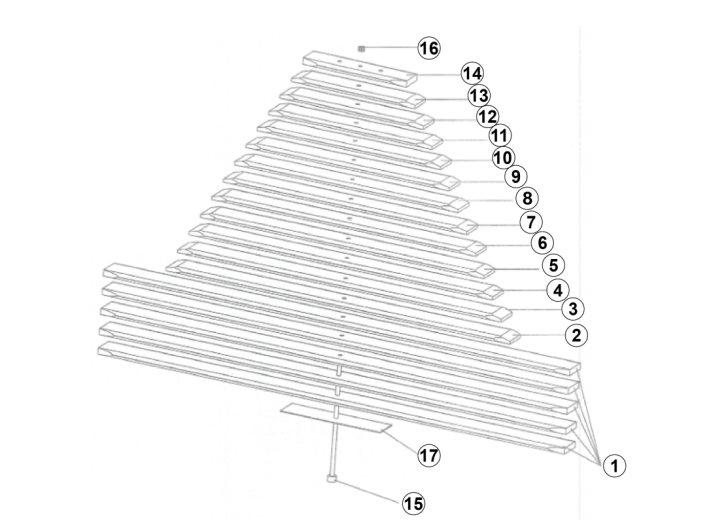

4110706152

Fr leaf spring assy lg12-4n13b100h18/20

Y

2

4110000730004

4th leaf of front leaf spring

Y

1

4110706152005

5th leaf of front leaf spring

Y

1

4110706152006

6th leaf of front leaf spring

Y

1

4110706152007

7th leaf of front leaf spring

Y

1

4110706152008

8th leaf of front leaf spring

Y

1

4110706152009

9th leaf of front leaf spring

Y

1

4110706152010

10th leaf of front leaf spring

Y

1

4110706152011

11th leaf of front leaf spring

Y

1

4110706152012

12th leaf of front leaf spring

Y

1

4110706152013

13th leaf of front leaf spring

Y

1

4110000730014

Center nut m16*1.5

Y

1

4110706152014

Center bolt m16*1.5*275

Y

1

4110702221016

Clip bolt

Y

2

4110702278020

Rivet

Y

2

4110702221018

Clip

Y

2

4110702221017

Clip nut

Y

2

4110706152015

Front leaf spring backing plate 320*90*3

Y

1

4013010120

Nut gb6185.1-m12epzn-8

Y

4

4015000168

Washer gb97.1-12epzn-300hv

Y

4

4110002084

Frame side limit block

Y

1

27120100221

Bolt

Y

1

27120105414

Washer gb1230-18-45

Y

16

27120113681

Cushion block

Y

1

27120181311

Wear pad

1

27120117501

Big washer

Y

6

27120118401

Adjusting shim

Y

2

27120118411

Sdjusting shim

Y

2

27120118421

Backing plate

Y

1

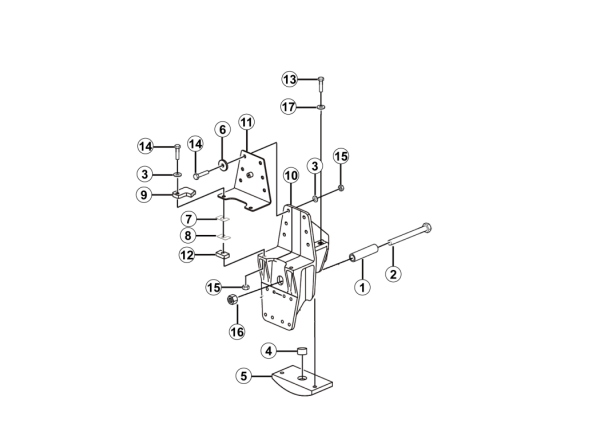

27120119371

Front leaf sring rear support saddle

Y

1

27120119391

Plate

Y

1

27120118391

Front leaf spring support pad

Y

2

4011010405

Bolt gb5786-m12*1.25*45epzn-8.8

Y

2

4011010505

Bolt gb5785-m18*1.5*85flznyc-12.9-480

Y

8

4013010239

Nut gb6185.2-m18*1.5flznyc-12-480

Y

8

4013010254

Nut gb6170-m16flznyc-12-480

Y

2

4015000168

Washer gb97.1-12epzn-300hv

Y

2

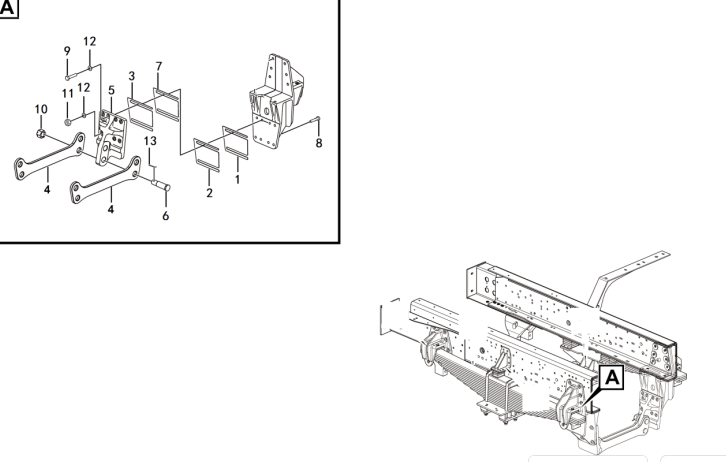

27120114781

Adjusting shim

Y

2

27120117822

Adjustment gasket

Y

2

27120122481

Second beam pole

Y

2

27120122491

Second beam seat

Y

2

27120123391

Pin40*80

Y

4

27120123461

Adjusting shim

Y

2

4011010585

Bolt gb5786-m16*1.5*60flznyc-12.9-480

Y

4

4011010614

Bolt gb5782-m16*80flznyc-12.9-480

Y

12

4013010114

Nut gb6178-m36epzn-10

Y

4

4013010251

Nut gb6185.1-m16flznyc-12-480

Y

12

4015010101

Washer gb1230-16-45

Y

28

4016000113

Pin gb91-6.3*63epzn-q235a

Y

4

4011000085

Bolt gb5783-m10*35epzn-8.8

Y

4

4013010119

Nut gb6185.1-m10epzn-8

Y

4

4015000162

Washer gb97.1-10epzn-300hv

Y

4

27120117411

Pin

Y

4

4013010114

Nut gb6178-m36epzn-10

Y

4

4016000113

Pin gb91-6.3*63epzn-q235a

Y

4

4011010560

Bolt gb5783-m20*85flznyc-12.9-480

Y

4

4011010584

Bolt gb5782-m20*160flznyc-12.9-480

Y

4

4013010256

Nut gb6185.1-m20flznyc-12-480

Y

4

27120104442

Washer

Y

4

4110000290003

98 dust ring yt10420

N

1

4110000290004

Ioint ball pin assy yt11260（290）

N

1

4110000290005

Retaining ring yt10440（98 holes）

N

1

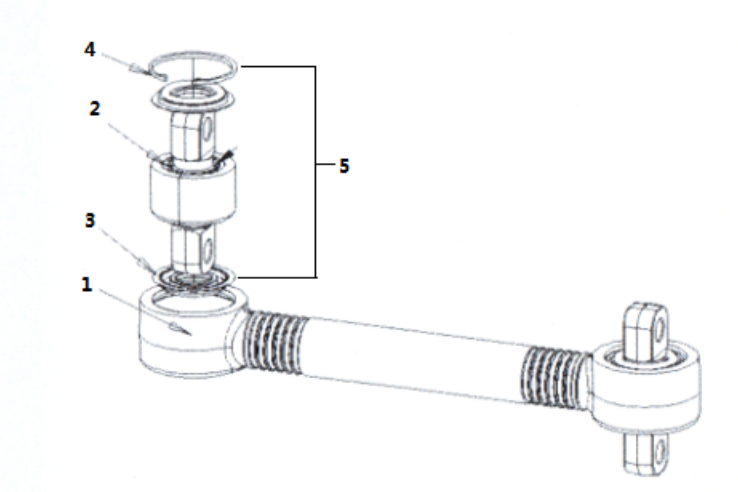

4110000290001

Front thrust rod repair kit

Y

1

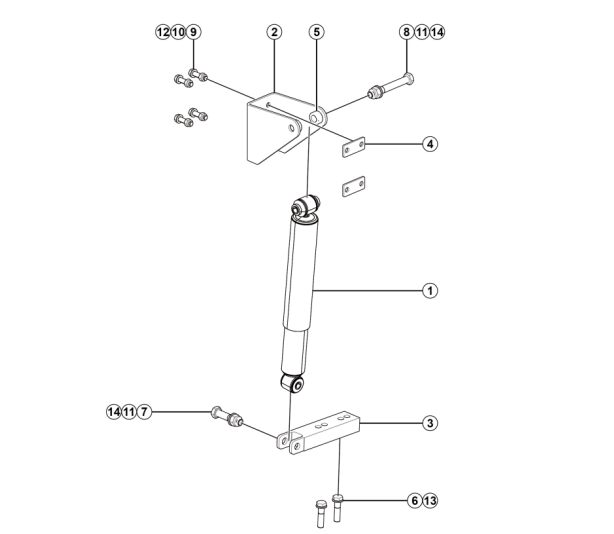

27120123481

Shock absorber upper bracket assembly

Y

2

27120115632

Stents under shock absorber

Y

2

27120114261

Base plate

Y

4

27120115621

Sleeve

Y

4

4011010586

Bolt gb5785-m20*1.5*80flznyc-12.9-480

Y

4

4011010575

Bolt gb5785-m24*1.5*110flznyc-12.9-480

Y

2

4011010574

Bolt gb5785-m24*1.5*180flznyc-12.9-480

Y

2

4011010585

Bolt gb5786-m16*1.5*60flznyc-12.9-480

Y

8

4013010255

Nut gb6185.2-m16*1.5flznyc-12-480

Y

8

4013010258

Nut gb6185.2-m24*1.5flznyc-12-480

Y

4

4015000181

Washer gb97.1-16epzn-300hv

Y

8

4015000176

Washer gb97.1-20epzn-300hv

Y

4

4015000167

Washer gb97.1-24epzn-300hv

Y

4

27120103821

Guide pin

Y

4

27120115111

Spring pressing block

Y

2

27120116781

Bolt

Y

16

27120103842

Six angle with the shoulder self-locking nut

16

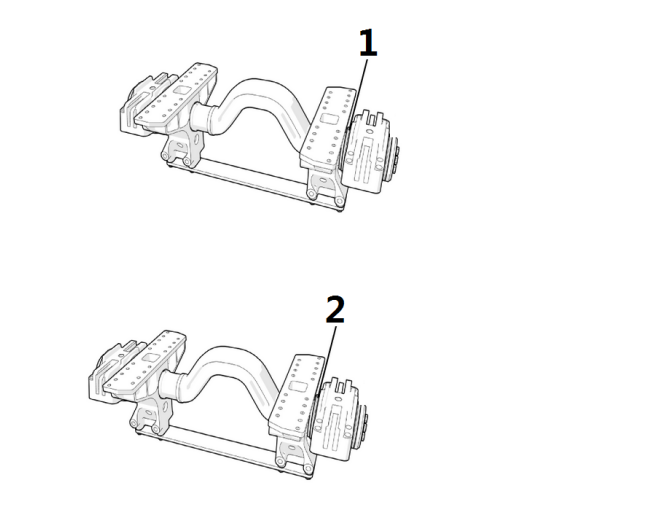

27120170181

Balance shaft assembly

N

1

27120116741

Base plate

Y

4

4110706916

Leaf spring limiting block

Y

4

4011000084

Bolt gb5783-m10*30epzn-8.8

Y

16

4015000162

Washer gb97.1-10epzn-300hv

Y

16

4011000351

Bolt gb5786-m16*1.5*35epzn-8.8

Y

8

4015000181

Washer gb97.1-16epzn-300hv

Y

8

27120122951

Bearer of middle axle spacing block

Y

2

27120122961

Bearer of rear axle spacing block

Y

2

4013010121

Nut gb6185.1-m14epzn-8

Y

16

4011010194

Bolt gb5782-m14*65epzn-8.8

Y

16

4012010119

Stud gb899-a-m18*1.5*50flzny-12.9-480

Y

36

4013010257

Nut gb6171-m18*1.5flznyc-12-480

Y

36

27120105414

Washer gb1230-18-45

Y

36

4013010119

Nut gb6185.1-m10epzn-8

Y

16

27120169103

Guide plate

Y

4

4110703078006

6th leaf of rear leaf spring

Y

1

4110703078007

7th leaf of rear leaf spring

Y

1

4110703078008

8th leaf of rear leaf spring

Y

1

4110703078009

9th leaf of rear leaf spring

Y

1

4110703078010

10th leaf of rear leaf spring

Y

1

4110703078011

11th leaf of rear leaf spring

Y

1

4110703078012

12th leaf of rear leaf spring

Y

1

4110703078013

13th leaf of rear leaf spring

Y

1

4110703078014

14th leaf of rear leaf spring

Y

1

4110703078015

15th leaf of rear leaf spring

Y

1

4110703078016

16th leaf of rear leaf spring

Y

1

4110703078017

17th leaf of rear leaf spring

Y

1

4110703078018

18th leaf of rear leaf spring

Y

1

4110001448320

Center bolt m16*1.5*510

Y

1

4110000730014

Center nut m16*1.5

Y

1

4110707338020

Rr leaf spring spacer 450*110*3

Y

1

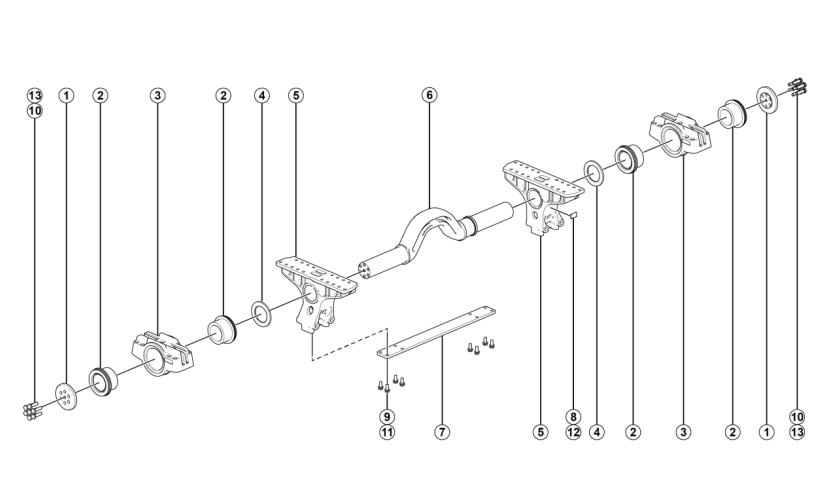

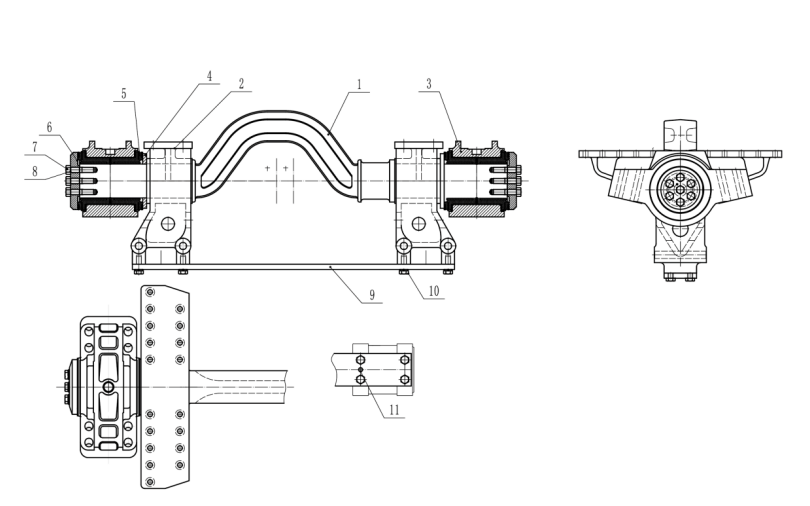

4110705342

Maintenance-free balanced shaft lg12-136

N

1

4110705342

Maintenance-free balanced shaft lg12-136

N

1

4110705342002

Balance shaft bracket lw9770520217

Y

2

4110705342003

Balance shaft housing 88029180703

Y

2

4110705342004

Washer 88029180204

Y

2

4110705342005

Flange bush 88029180205

Y

4

4110705342006

Flange 88029180106

Y

2

4110705342007

Bolt

Y

14

4110705342008

Anti-loose washer q41222f9

Y

28

4110705342009

Connecting plate lw88029180007

Y

1

4110705342010

Bolt & washer set q151b2050tf2/q41220f9

Y

16

4110705382

Rubber bearing lg12-136

Y

4

27120170151

Balance shaft housing

Y

2

27120170131

Washer

Y

2

27120170113

Balance shaft holder

Y

2

27120170121

Balance shaft

Y

1

27120170143

Plate

1

27120114891

Balance shaft nameplate

N

1

4011011452

Bolt 5783-m20*1.5*40flznyc-12.9-480

Y

8

4011011503

Bolt gb5786-m22*1.5*80flznyc-12.9-480

Y

14

4015000002

Washer gb1230-20epzn-45

Y

8

4019000012

Rivet gb827-3*5-bl2

Y

4

4190707095

Lock washer nl22-g

Y

14

27120103881

Hexangular self-locking nut with the shoulder m27

Y

16

27120105031

Spacer sleeve

Y

12

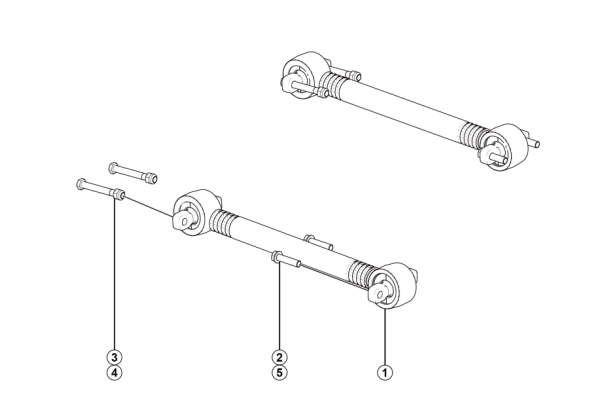

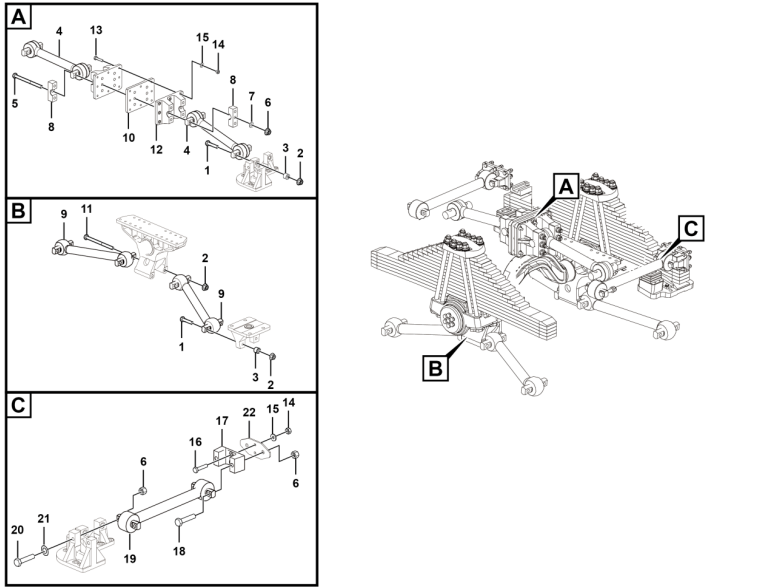

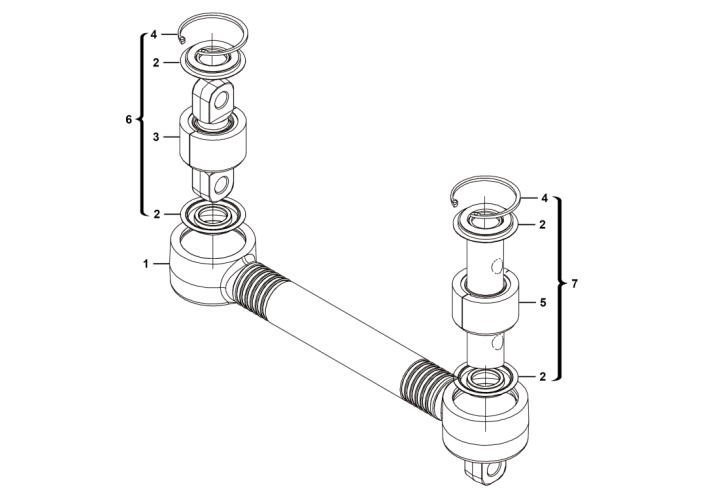

4110702874

Upr thrust rod lg12-stlg-738

Y

2

27120118111

Bolt m24*3*470

Y

6

27120103611

Self-locking nut with the shoulder

Y

14

4015000003

Washer gb1230-24epzn-45

Y

6

27120116801

Upper thrust bar scale

Y

4

4110702875

Lower thrust rod lg12-xtlg-763

Y

4

27120116841

Plate

Y

1

27120103721

Bolt m27*3*330-12.9

Y

4

27120116811

Lower thrust bar scale

Y

2

4011010682

Bolt gb5782-m16*125flznyc-12.9-480

Y

8

4013010251

Nut gb6185.1-m16flznyc-12-480

Y

12

4015000001

Washer gb1230-16epzn-45

Y

24

4011010646

Bolt gb5782-m16*90flznyc-12.9-480

Y

4

27120119961

Across thrust rod frame seat

Y

2

4110001231

Bolt gb5782-m24*215flznyc-12.9-480

Y

4

4110705693

Transverse thrust rod

Y

2

4011010489

Bolt gb5782-m24*150-12.9

Y

4

4190707582

Lock washer nl24-g

N

4

27120119971

Plate

Y

2

4110702875002

Seal ring

N

4

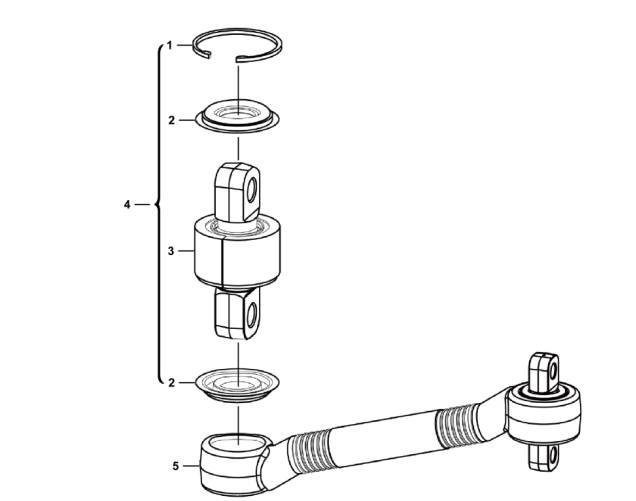

4110702875003

Joint ball pin assy

N

2

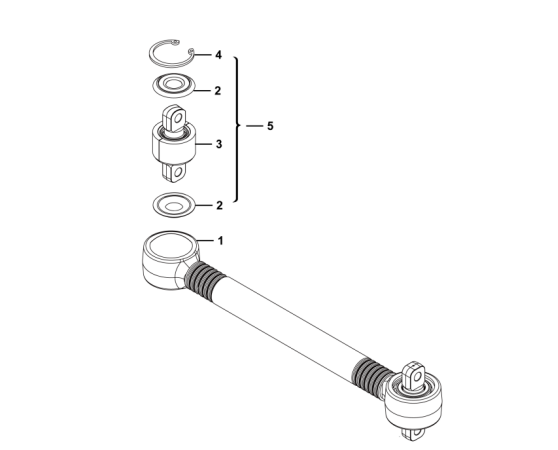

4110000883

Thrust rod repair kit

Y

2

4110702875005

Lower thrust rod mounting

Y

1

4110001815001

Scraper seal

N

4

4110702874003

Joint spherical pin

N

1

4110702874004

Retaining ring for hole

N

2

4110702874005

Joint spherical pin

N

1

4110702186

Thrust rod repair kit

Y

1

4110702187

Thrust rod repair kit

Y

1

4110705727001

Joint ball pin assy

Y

1

4110705727002

Seal ring（98）

N

1

2712010386005

Snap ring 27120103861-4（98*5）

Y

1

4110705727

Thrust rod repair kit

Y

1

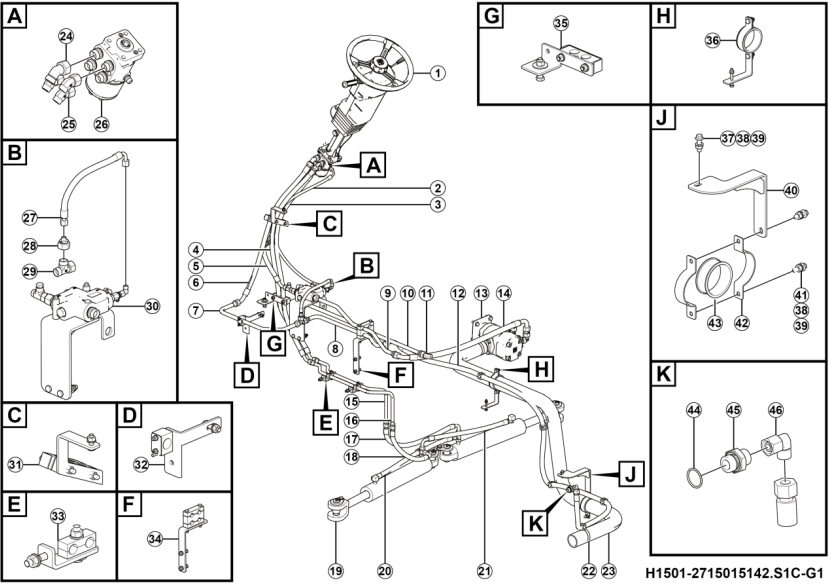

4120704991

Hose f481cacf080804-1080

Y

1

4120717416

Hose f451tccace151508-1320

1

4120717417

Hose f451tccace151508-1390

1

4120717418

Hose f451tccace151508-910

1

4120707890

Hose f481cace181812-1000

1

27150151481

Pipe wldmt 08

1

27150151011

Pipe wldmt 05

1

27150151541

Pipe wldmt 02

1

27150151551

Pipe wldmt 09

1

4041001262

Combination joint lgb143-03019

Y

1

4120717434

Hose f481tccacf181810-2800

1

27150151081

Gear pump assy

1

4120717448

Hose f351tccfce222212-970-ywes

1

27150151461

Pipe wldmt 01

1

27150151471

Pipe wldmt 07

1

4120711467

Hose f451tccacf151508-720-sg

Y

1

4120717226

Hose f451tccacf151508-460-sg

1

27150157431

Steering cylinder assy

1

4120717228

Hose f451tccaca151508-720-sg

1

4120717227

Hose f451tccacf151508-780-sg

1

4190708164

Butterfly spring clamp φ70-φ92

Y

2
