#11325573 Soil cleaning device hydraulic cylinder

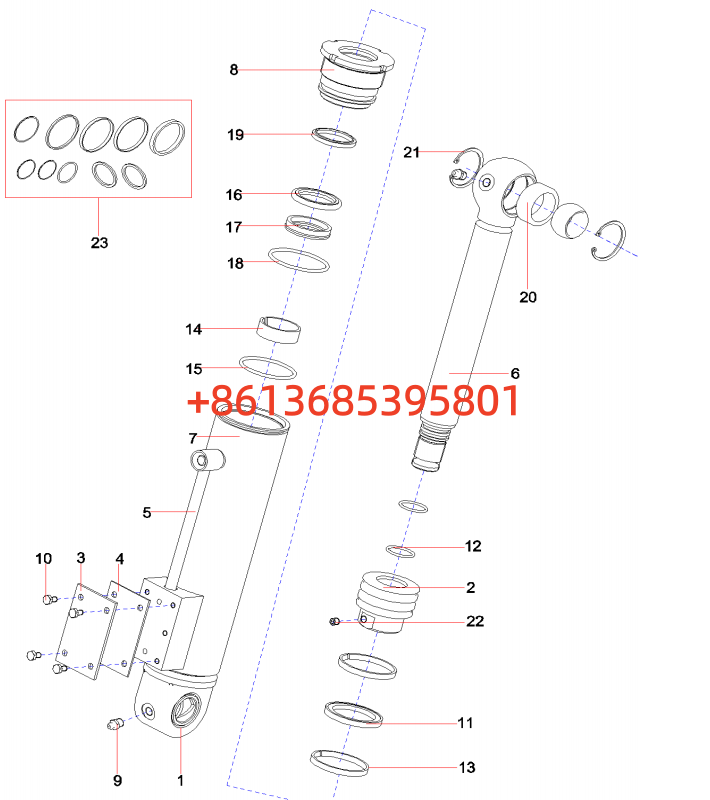

11325573 Soil cleaning device hydraulic cylinder

1 11211030 Bushing II 1

2 12325572 Piston 1

3 10663238 Cover Plate 1

4 10663239 Gasket 1

5 11325575 Cylinder Assembly 1

6 13840536 Piston Rod Assembly 1

7 10250776 Retaining Ring 1

8 12330687 Guide Sleeve 1

9 A210804000002 Grease Necklace 2

10 21005327 Bolt M6×10GB5783 4

11 A880806030220 OK Seal 1

12 A210609000042 O-Ring 2

13 A880803040052 UP Guide Ring 58×63×6.3 KT200 2

14 B230101000195 UP Guide Ring 40×45×15 KT200 1

15 A210609000162 O-ring 1

16 13599600 GSJ Seal 1

17 B230101000079 BS Seal 1

18 A210609000131 O-ring 1

19 B230101000064 Dust Ring 1

20 A221500000035 Spherical Plain Bearing 1

21 A210416000039 Retaining Ring 2

22 A210205000004 Screw M8×10GB78 1

23 11338893 D208M process sealing package 1

#11325573 Soil cleaning device hydraulic cylinder.png
