#14299309 Power Head

发布日期：2026-03-24

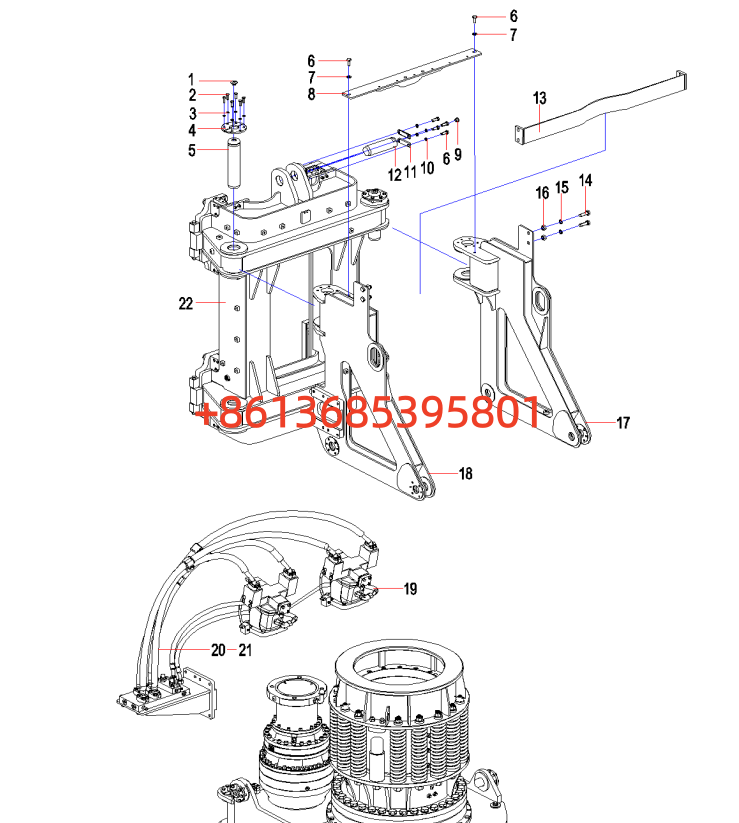

#14299309 Power Head.png

1 13008751 M30 rubber plug 2

2 A210111000203 Bolt 12

3 60115069 Double-tooth disc spring washer 12DIN9250 VS 12

4 12589661 Clamping plate 4

5 13065162 Carriage pin 2

6 A210111000053 Bolt 14

7 21001338 Washer 16GB97.1 300HV 2

8 13066530 Wire harness bracket 1

9 13010811 M24 rubber plug 1

10 60115071 Double-tooth disc spring washer 16DIN9250 VS 4

11 12708211 Shaft end baffle 70/75 2
12 14161604 Lower shaft of pressurized cylinder 70 1
13 14110412 Guardrail 1
14 A210111000062 Bolt M20×60GB5783 Grade 10.9 4
15 60115072 Double toothed disc spring washer 20DIN9250 VS 4
16 A210307000029 Nut 4
17 14110344 Left connecting plate 1
18 14110226 Right connecting plate 1
19 B230103004426 Hose 2
20 14130086 Power head electrical system 1
21 14130107 Power head hydraulic system 1
22 14299237 Carriage assembly 1

#14299309 Power Head-1.png #14299309 Power Head
#Sany Rotary Drilling Rig #Sany Rotary Drilling Rig parts
#sanyparts #sany #SR405RH10 rotary drilling rig body
#Rotary Rig #sanyparts #sany # #SR405RH10
1 13008751 M30 rubber plug 6

2 A210111000203 Bolt 60

3 60115069 Double toothed disc spring washer 12DIN9250 VS 36

4 12589661 Clamping plate 4

5 13065162 Carriage pin 2

10 60115071 Double toothed disc spring washer 16DIN9250 VS 24

23 13008755 M20 rubber plug 4

24 12457337 Clamping plate 8

25 12069067 Pin SR280LHII.5-4 4

26 13241940 Clamping plate 8

27 14420634 Lower pressure plate pin 4

28 13241853 Bushing 2 4
29 13758446 Lower Pressure Plate 1

#14299309 Power Head
#Sany Rotary Drilling Rig #Sany Rotary Drilling Rig parts
#sanyparts #sany #SR405RH10 rotary drilling rig body
#Rotary Rig #sanyparts #sany # #SR405RH10
WhatsApp: 136 8539 5801
WhatsApp: 136 8539 5801
WeChat: 136 8539 5801
6 A210111000053 Bolt 8

10 60115071 Double-tooth disc spring washer 16DIN9250 VS 72

30 A210111000244 Bolt M30×80GB5783 10.9 grade 36

31 60023436 Locking washer M30 36

32 13195716 Buffer key sleeve 1

33 13069211 Bolt 64

34 B210780000077 Pipe end plug 2

35 B210780000228 End straight connector 2

36 13967304 Gearbox assembly 2

37 A210204000483 Screw M6×35GB70.1 Dacrust 4
38 23000123 Single-joint pipe clamp TLPG-322 2
39 14109435 Gearbox assembly 1
40 14110443 Outrigger welding 2

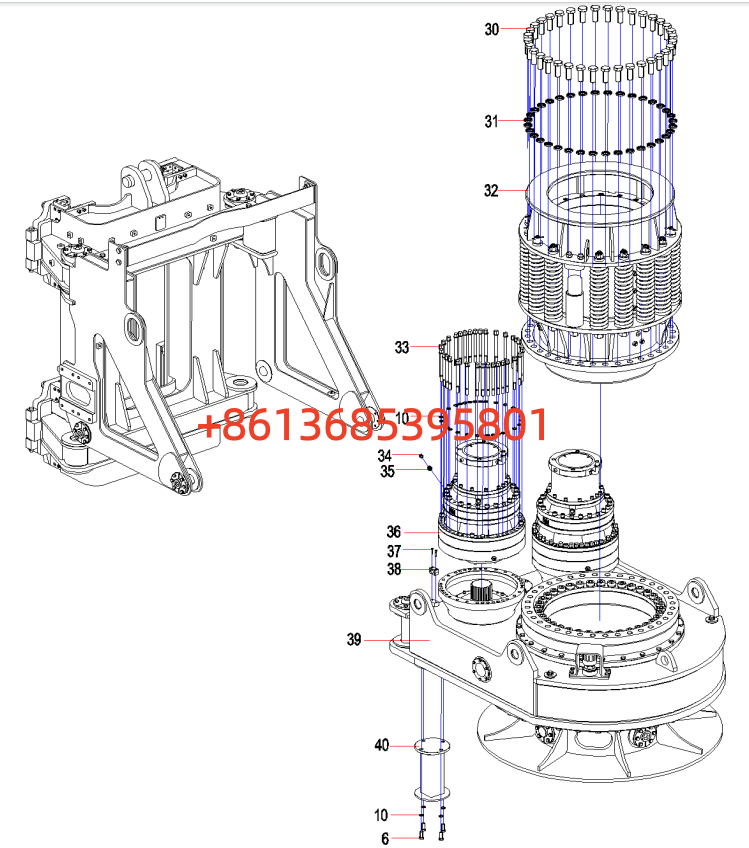

#14299309 Power Head-2.png
